ICC Sensor Integrated Unit: Removal

WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper. Refer to REMOVAL .
  2. Disconnect ICC sensor integrated unit connector.

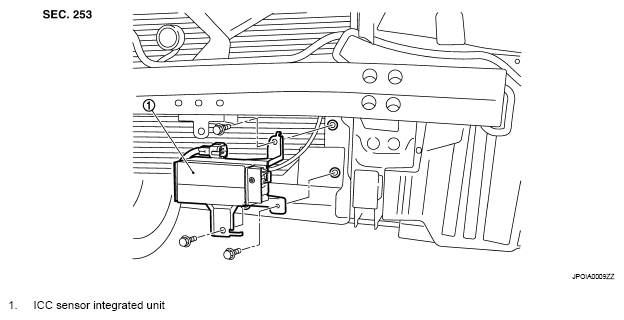

    Fig 1: Identifying ICC Sensor Integrated Unit
    G05723251Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove mounting bolts from ICC sensor integrated unit.
  4. Remove ICC sensor integrated unit (1).
