Evaporator Temperature Sensor: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

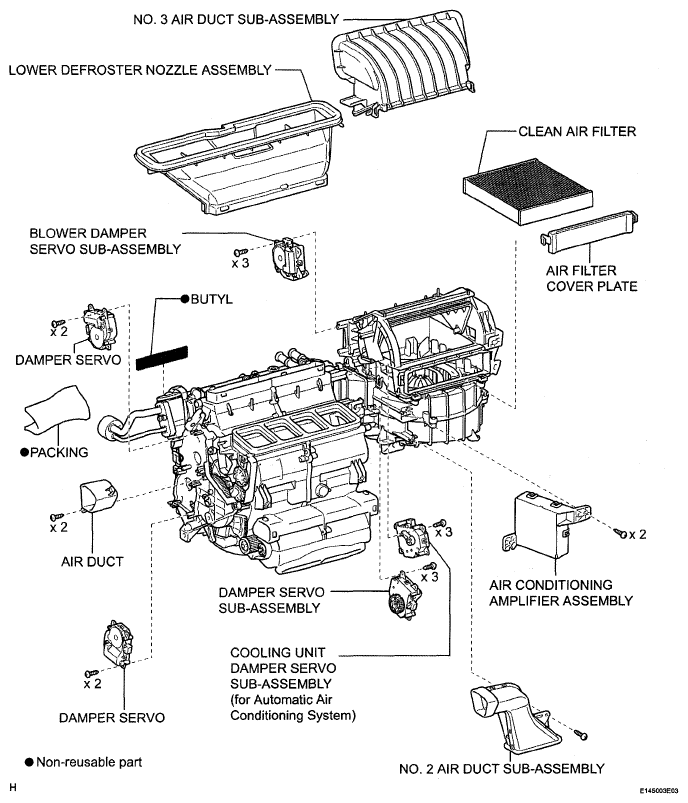

Fig 1: Identifying Evaporator Temperature Sensor Replacement Components (1 Of 2)
G05155627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

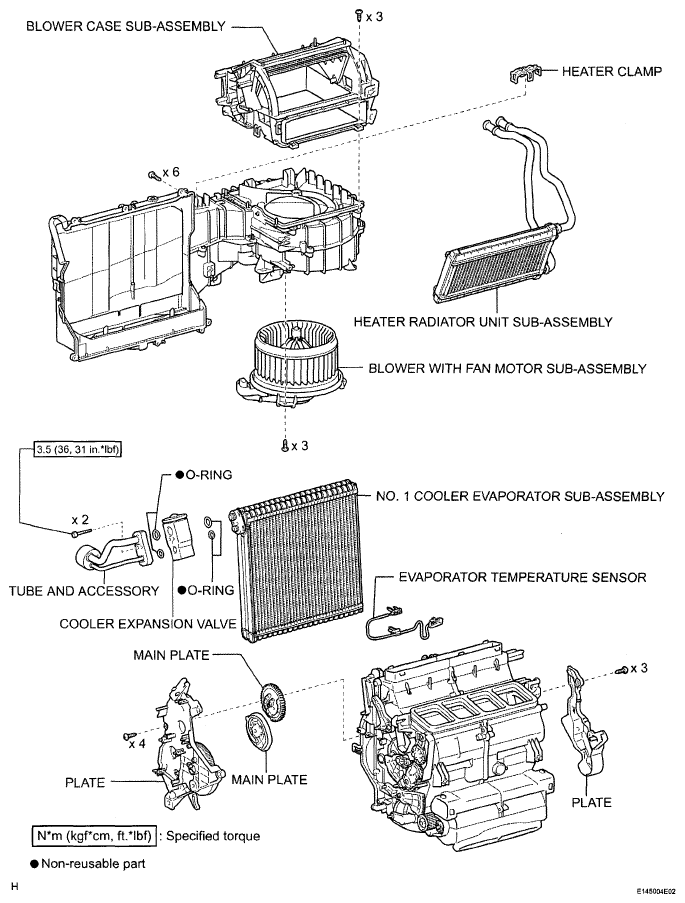

Fig 2: Identifying Evaporator Temperature Sensor Replacement Components (2 Of 2) With Torque Specifications
G05155628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
