Ambient Temperature Sensor: Inspection

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT AMBIENT TEMPERATURE SENSOR

Measure the resistance according to the value (s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION TABLE

Tester Connection	Condition	Specified Condition
1-2	10°C (50°F)	3.00 to 3.73 kΩ
	15°C (59°F)	2.45 to 2.88 kΩ
	20°C (68°F)	1.95 to 2.30 kΩ
	25°C (77°F)	1.60 to 1.80 kΩ
	30°C (86°F)	1.28 to 1.47 kΩ
	35°C (95°F)	1.00 to 1.22 kΩ
	40°C (104°F)	0.80 to 1.00 kΩ
	45°C (113°F)	0.65 to 0.85 kΩ
	50°C (122°F)	0.50 to 0.70 kΩ
	55°C (131°F)	0.44 to 0.60 kΩ
	60°C (140°F)	0.36 to 0.50 kΩ

NOTE:

Touching the sensor even slightly may change the resistance value. Hold the connector of the sensor.
When measuring the resistance, the sensor temperature must be the same as the ambient temperature.

HINT:

As the temperature increases, the resistance decreases (see the graph below).

If the result is not as specified, replace the ambient temperature sensor.

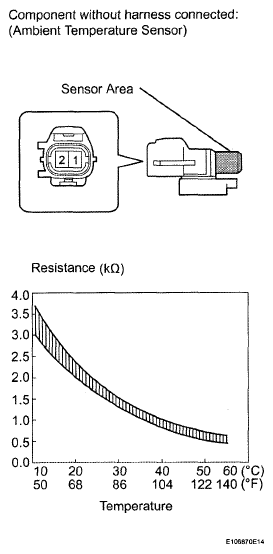

Fig 1: Identifying Ambient Temperature Sensor Connector Terminal And Resistance Graph
