Removal and Installation: Components

WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.

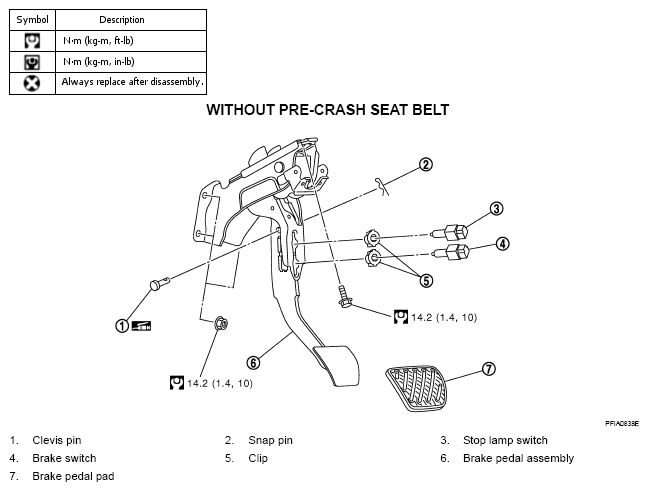

Fig 1: Brake Pedal Replacement Components With Torque Specifications (Without Pre Crash Seat Belt)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " and the followings for the symbols in the figure.

: Apply Multi-purpose grease.

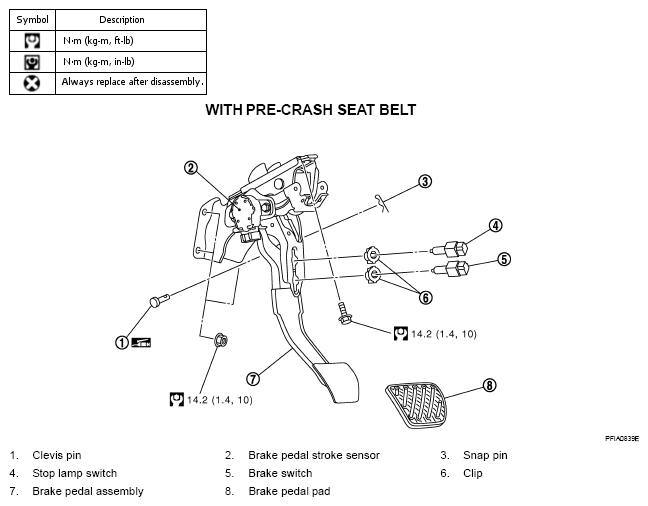

Fig 2: Brake Pedal Replacement Components With Torque Specifications (With Pre Crash Seat Belt)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " and the followings for the symbols in the figure.

: Apply Multi-purpose grease.

NOTE: Clevis pin can be installed from both left and right.
