Disassembly and Assembly: Component

WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.

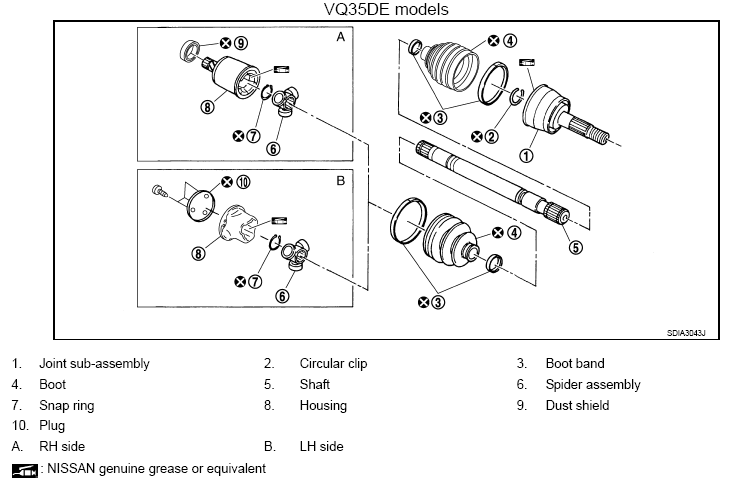

Fig 1: Exploded View Of Front Drive Shaft Components (VQ35DE models)
G00469368Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to CONTENTS for the symbols in the figure.

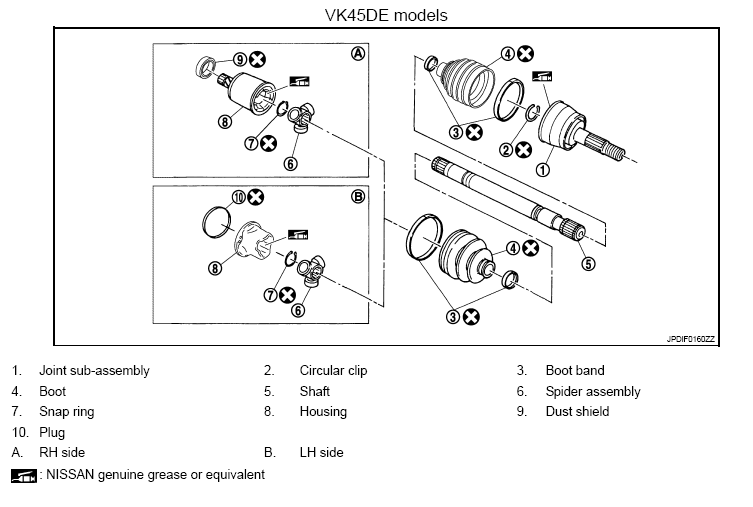

Fig 2: Exploded View Of Front Drive Shaft Components (VK45DE models)
G00469369Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to CONTENTS for the symbols in the figure.
