ASC (ADAPTIVE SHIFT CONTROL) : System Diagram

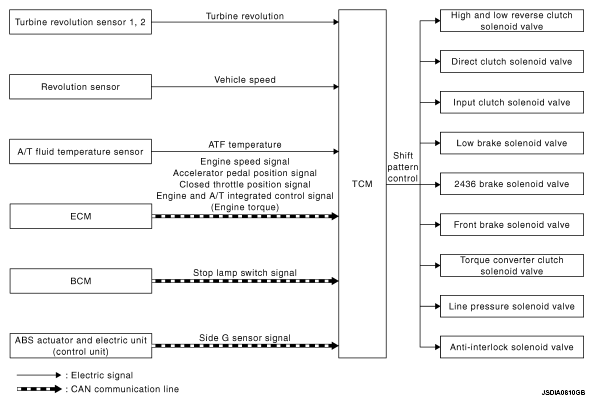

Fig 1: Shift Pattern Control System Diagram

G05980302

Courtesy of NISSAN MOTOR CO., U.S.A.
