Control Rod Components (AWD Models)

Refer to the figure below for control rod removal and installation procedure.

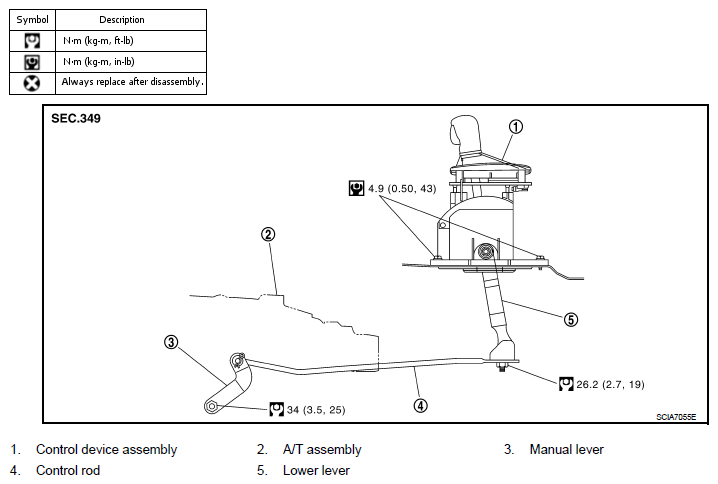

Fig 1: Shift Control Rod Replacement Components With Torque Specifications (AWD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to General Information to make sure icons (symbol marks) in the figure. Refer to "COMPONENT ".
