Home >> Infiniti >> 2009 >> M45 Base >> Repair and Diagnosis (Single Page) >> Restraints >> Restraints Control Systems >> Supplemental Restraint System (SRS) >> Service Information >> Side Curtain Air Bag Module >> Removal and Installation >> Notes

Removal and Installation: Notes

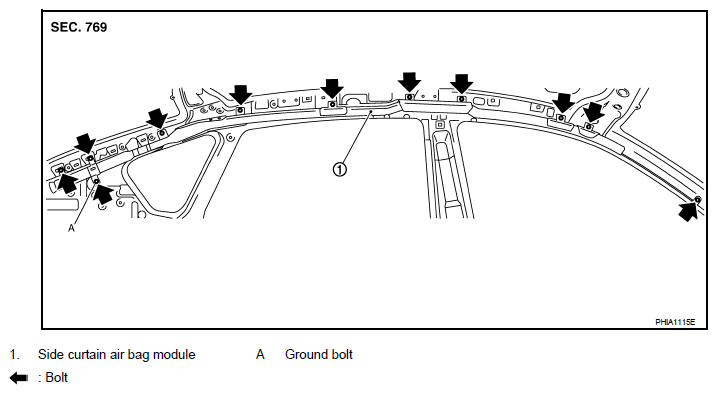

Fig 1: Identifying Side Curtain Air Bag Module
G06310579Courtesy of NISSAN MOTOR CO., U.S.A.
WARNING:
  • Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3 minutes.
  • Never use air tools or electric tools for servicing.
