Removal and Installation: Removal

Remove the instrument panel assembly. Refer to "INSTRUMENT PANEL : REMOVAL AND INSTALLATION ".

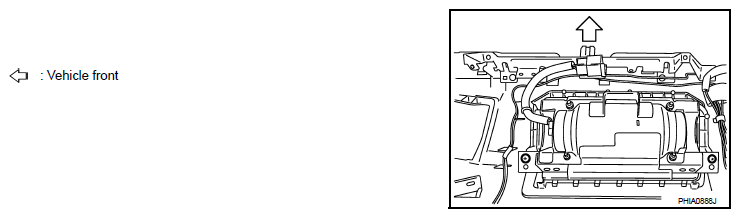

NOTE: The figure shows installed condition of the front passenger air bag module. (Under view of the module installed without glove box cover.)
1. Passenger air bag module connector
2. Passenger air bag module fixing bolt

  Fig 1: Identifying Passenger Air Bag Module Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the front passenger air bag module fixing screws.
Remove the air bag from the rear side hook.

Fig 2: Removing Air Bag From Rear Side Hook
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the front passenger air bag module from the instrument panel pad assemblies.
CAUTION:
- Always place the front passenger air bag module with pad side facing upward.
- Never impact the front passenger air bag module.
- Replace the front passenger air bag module if it has been dropped or sustained an impact.

  Fig 3: Precaution For Air Bag Module
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Never insert any foreign objects (screwdriver, etc.) into passenger air bag module.
- Never disassemble the passenger air bag module.
- Never expose the passenger air bag module to temperatures exceeding 90°C (194 °F).
- Never allow oil, grease, detergent, or water to come in contact with the passenger air bag module.
