WITHOUT NAVIGATION : System Diagram

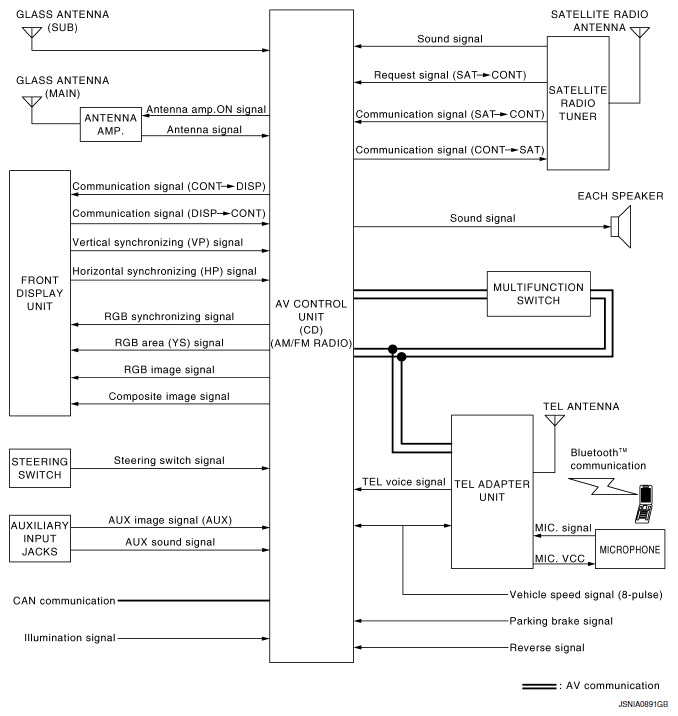

Fig 1: Multi AV System - System Diagram (Without Navigation)
G06308432Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
