WITH NAVIGATION : Schematic - BOSE Audio 2ch System -

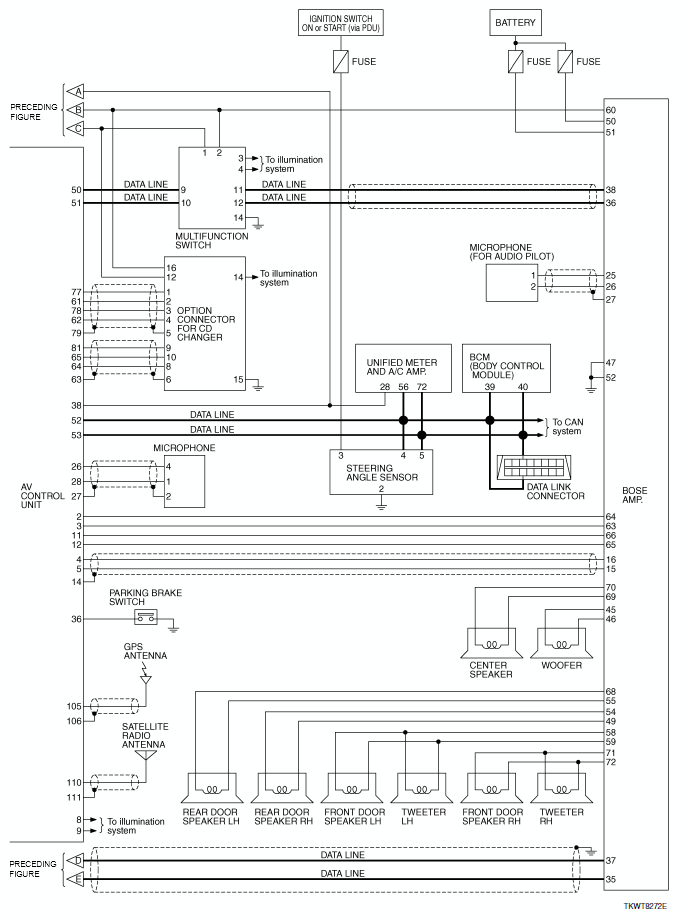

Fig 1: Bose Audio 2ch System Schematic Diagram (With Navigation) (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

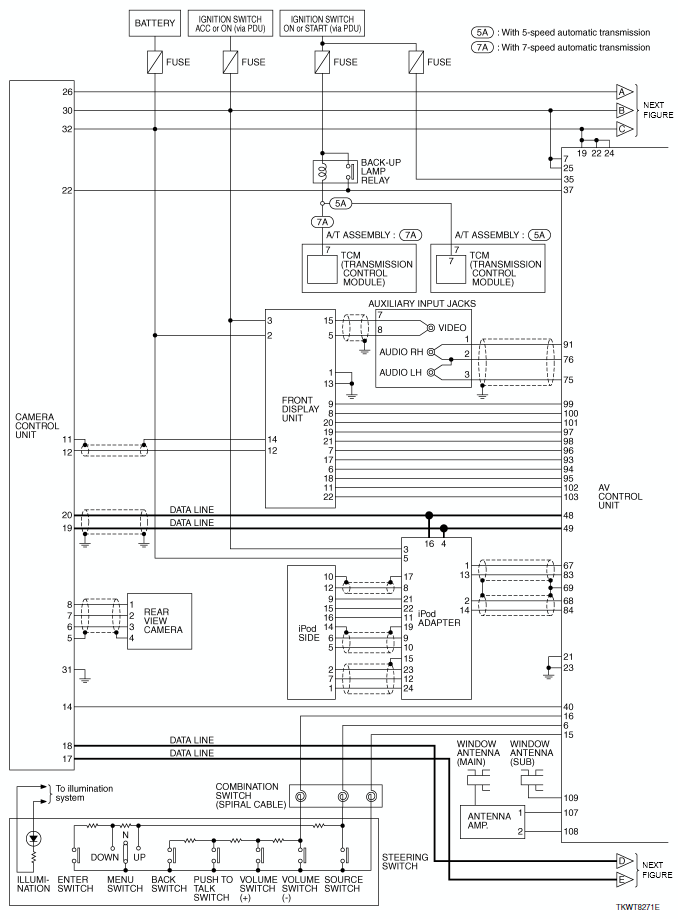

Fig 2: Bose Audio 2ch System Schematic Diagram (With Navigation) (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
