Auxiliary Input System

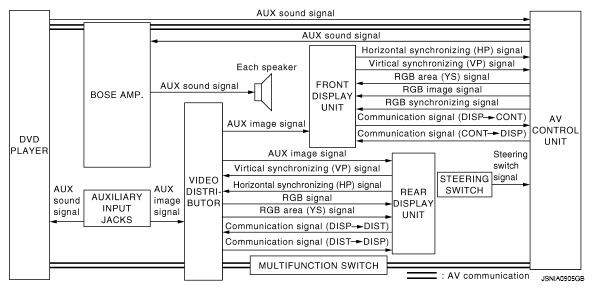

- The AUX sound signal input from the external input device is transmitted from auxiliary input jacks to DVD player. DVD player transmits it to AV control unit. AV control unit transmits the AUX sound signal to BOSE amp.
- The AUX image signal input from the external input device is transmitted to the video distributor. The video distributor transmits the AUX image signal to the front display unit and rear display unit.
- Operation can be performed with multifunction switch and steering switch. Multifunction switch transmits operation signal to AV control unit by AV communication.
