WITHOUT NAVIGATION : Schematic - Base Audio System -: Notes

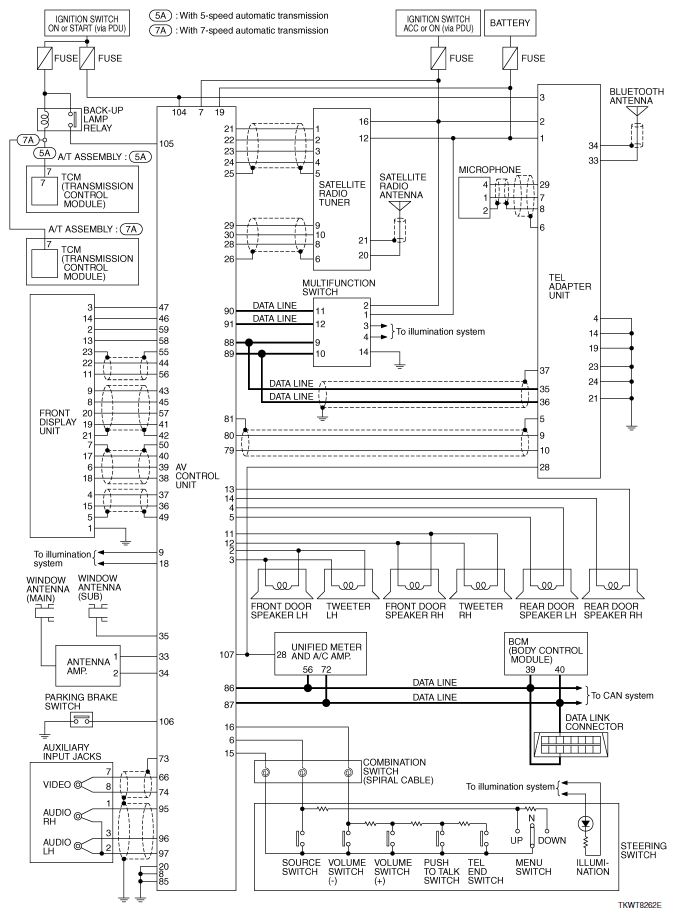

Fig 1: Base Audio System Schematic Diagram (Without Navigation)

G06308562

Courtesy of NISSAN MOTOR CO., U.S.A.
