Schematic - BOSE Audio 2ch System-

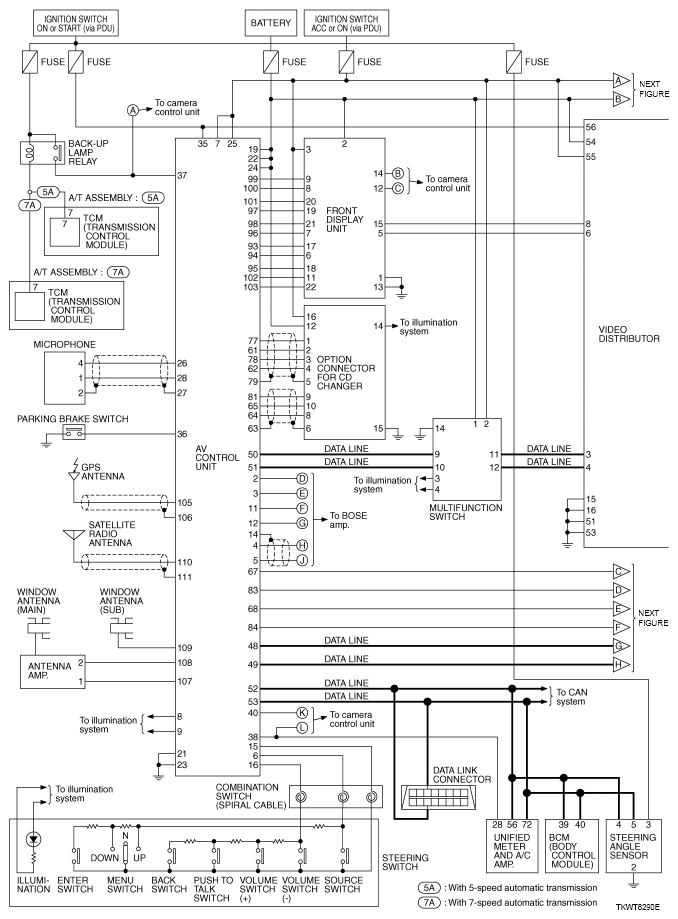

Fig 1: Bose Audio 2ch System - Schematic Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

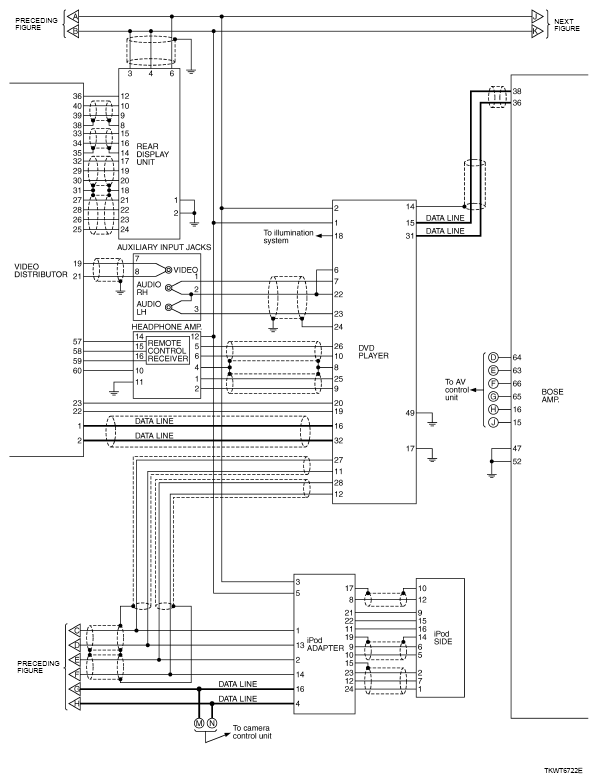

Fig 2: Bose Audio 2ch System - Schematic Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

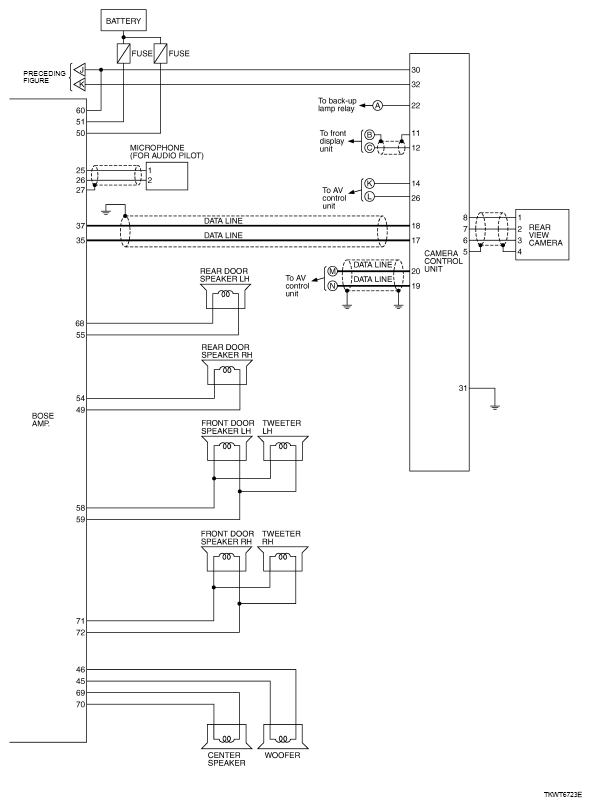

Fig 3: Bose Audio 2ch System - Schematic Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
