BCM (Body Control Module): Schematic

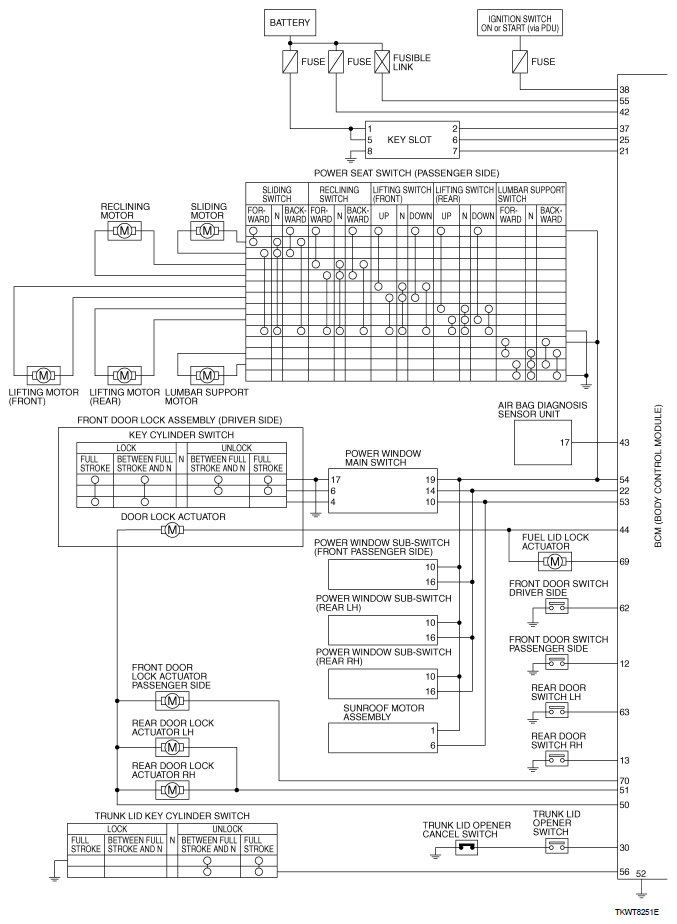

Fig 1: BCM Schematic (1 Of 2)

G06310721

Courtesy of NISSAN MOTOR CO., U.S.A.

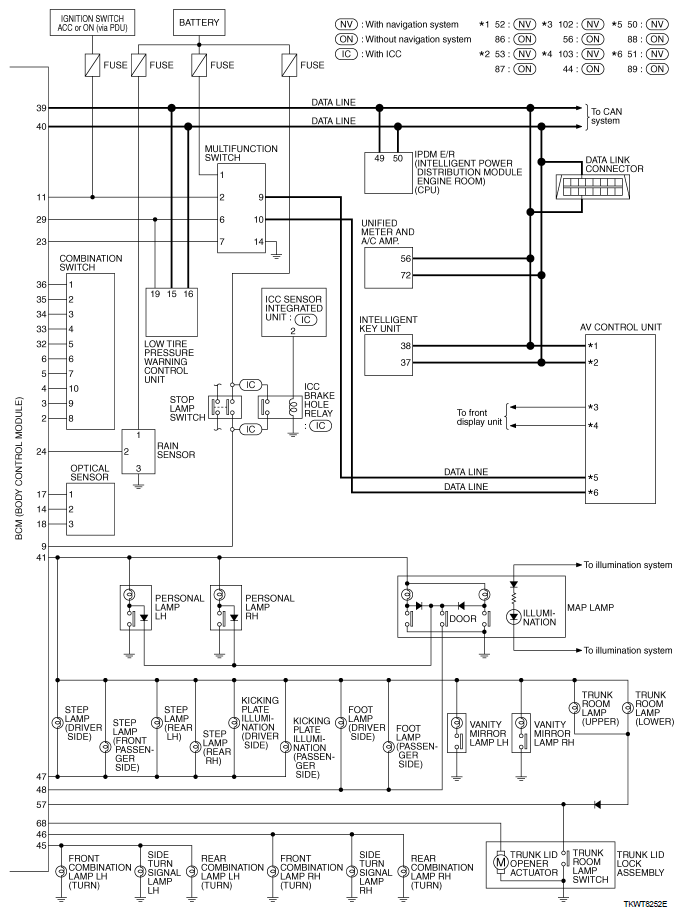

Fig 2: BCM Schematic (2 Of 2)

G06310722

Courtesy of NISSAN MOTOR CO., U.S.A.
