Section 8 (Engine Cooling System (1GR-FE)): Fan: Components
WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

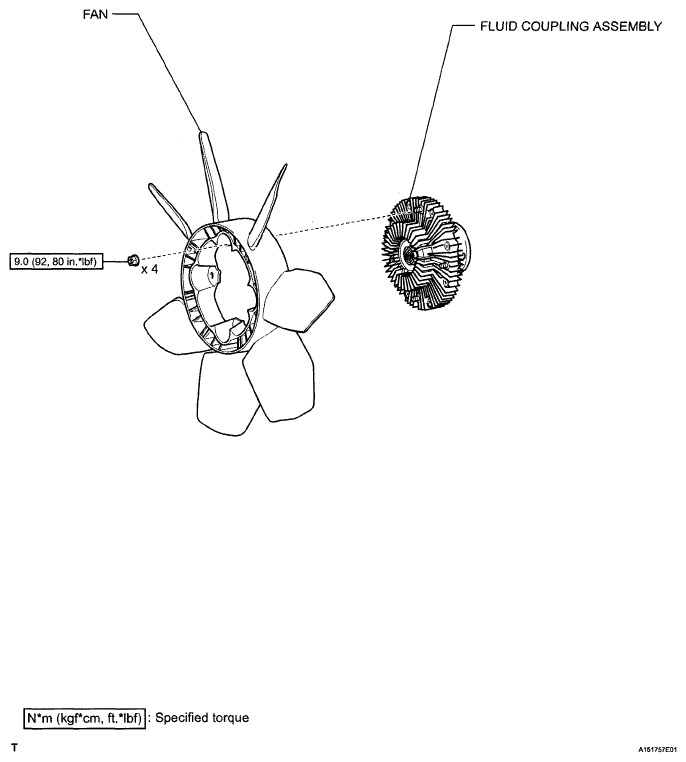

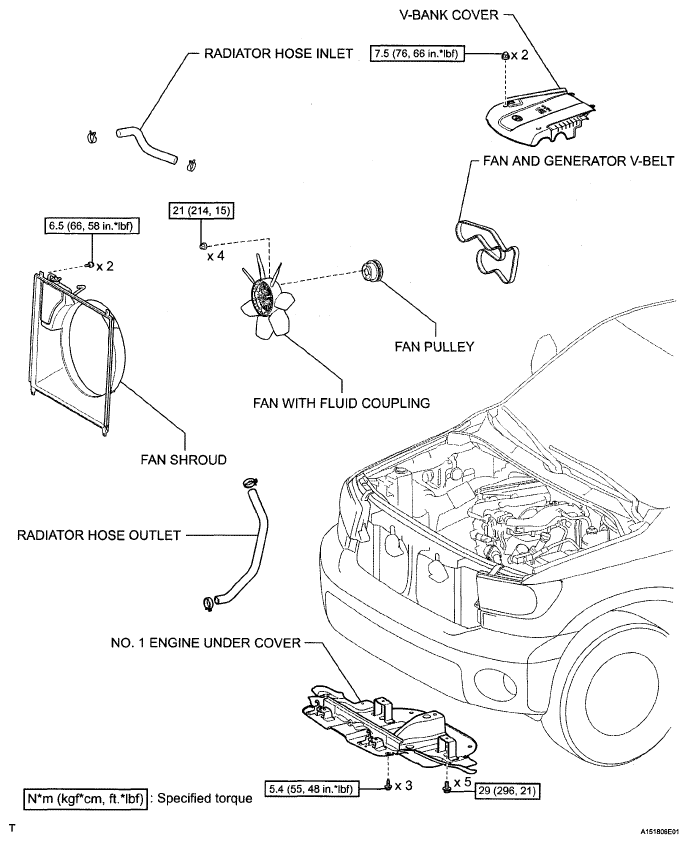

Fig 1: Fan Replacement Components With Torque Specifications (1 Of 2)
