Wiring Diagram - R/VIEW -

WARNING: This page is about a different car, the 2008 Infiniti FX45 and 2008 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

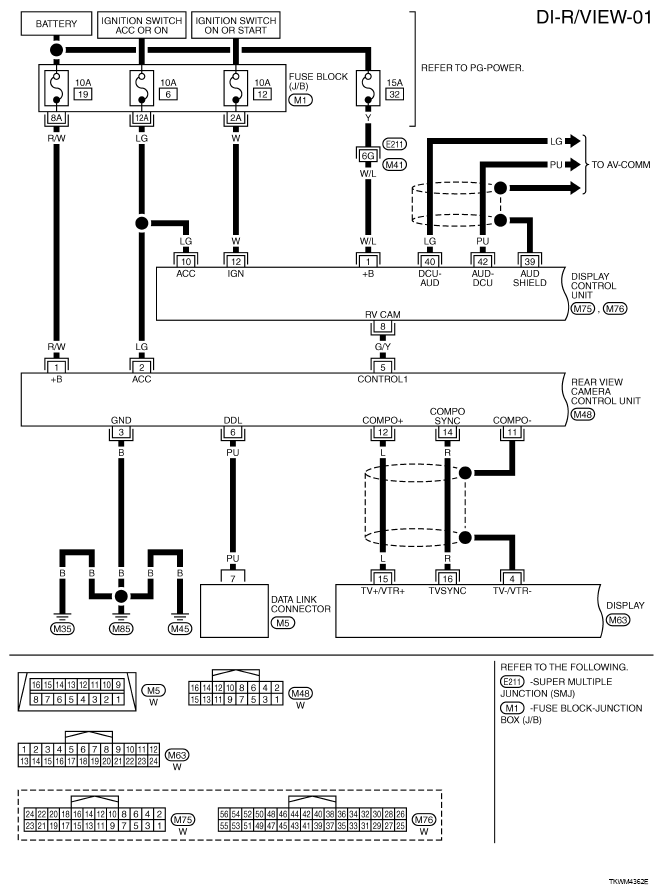

Fig 1: Identifying Rear View Monitor Wiring Diagram (DI-R/VIEW-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

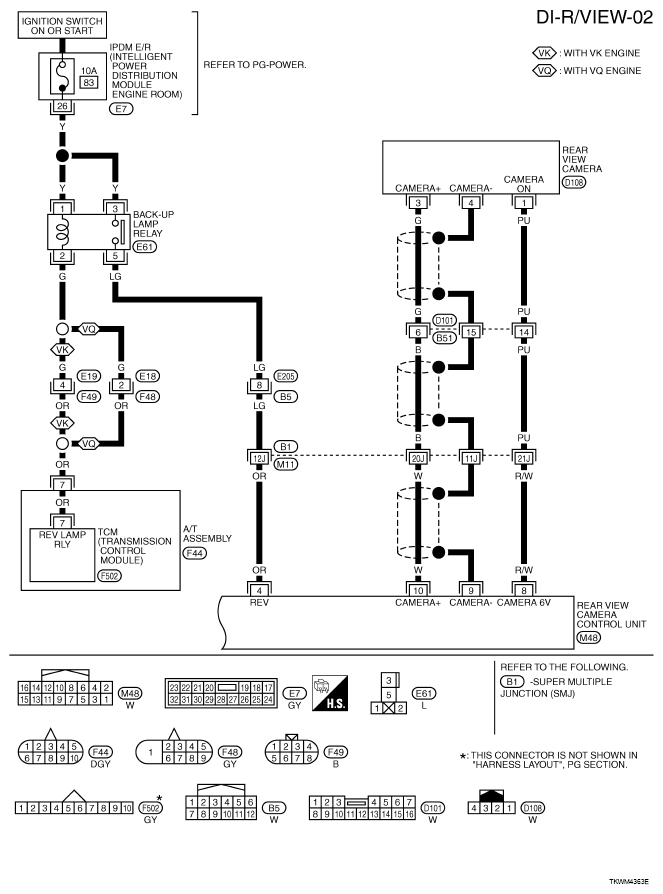

Fig 2: Identifying Rear View Monitor Wiring Diagram (DI-R/VIEW-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

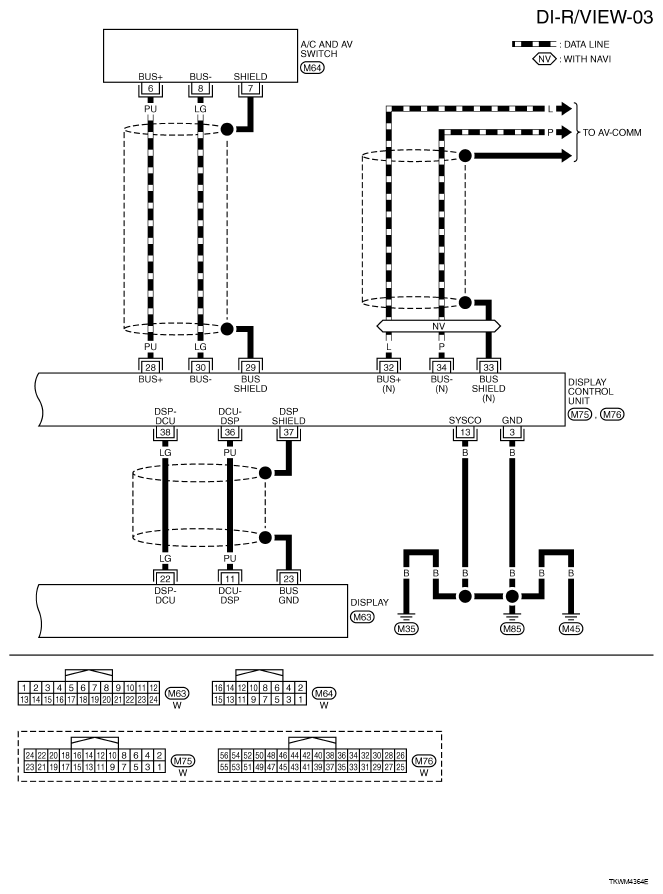

Fig 3: Identifying Rear View Monitor Wiring Diagram (DI-R/VIEW-03)

Courtesy of NISSAN MOTOR CO., U.S.A.
