How to Change The Display For Odo/trip Meter

WARNING: This page is about a different car, the 2008 Infiniti FX45 and 2008 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Switch modes with following procedure.

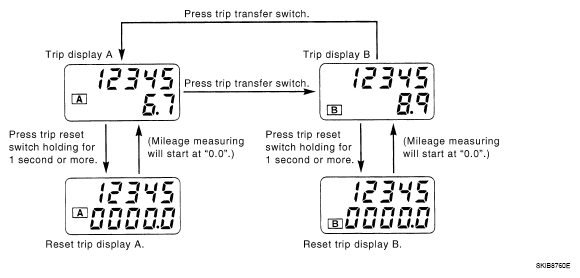

Fig 1: Identifying Display For ODO/TRIP METER

Courtesy of NISSAN MOTOR CO., U.S.A.

When trip transfer switch is pressed, trip meter display changes.
If trip reset switch is pressed for 1 second or more while "trip A" is displayed, only "trip A" is reset.

NOTE: The record of the odo meter is kept even if the battery cable is disconnected. The record of the trip meter is erased when the battery cable is disconnected.

Fig 2: Identifying ODO/TRIP Meter Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
