REAR DOOR SPEAKER (for CrewMax): Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

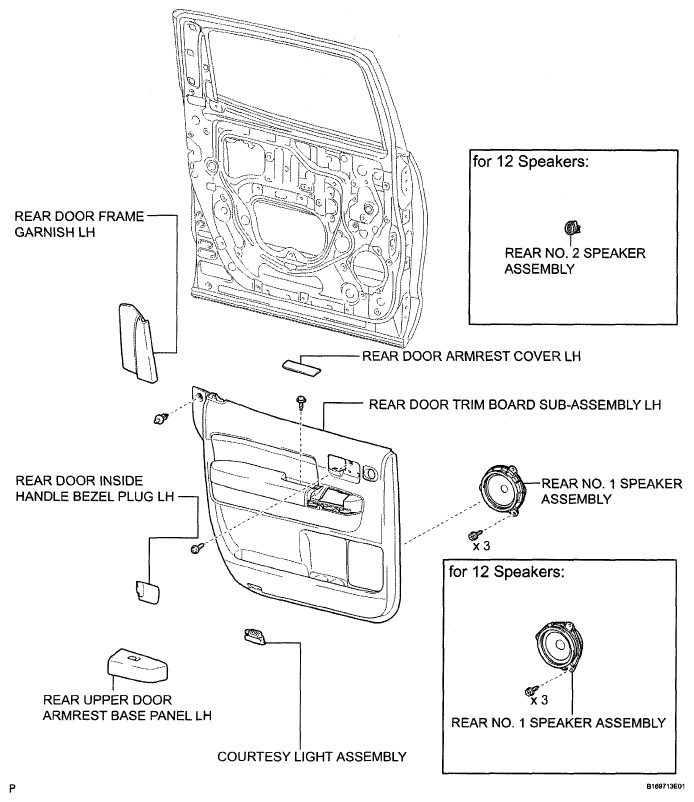

Fig 1: Identifying Rear Door Speaker (For CrewMax) Components
G05156435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
