FRONT DOOR SPEAKER (for CrewMax): Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

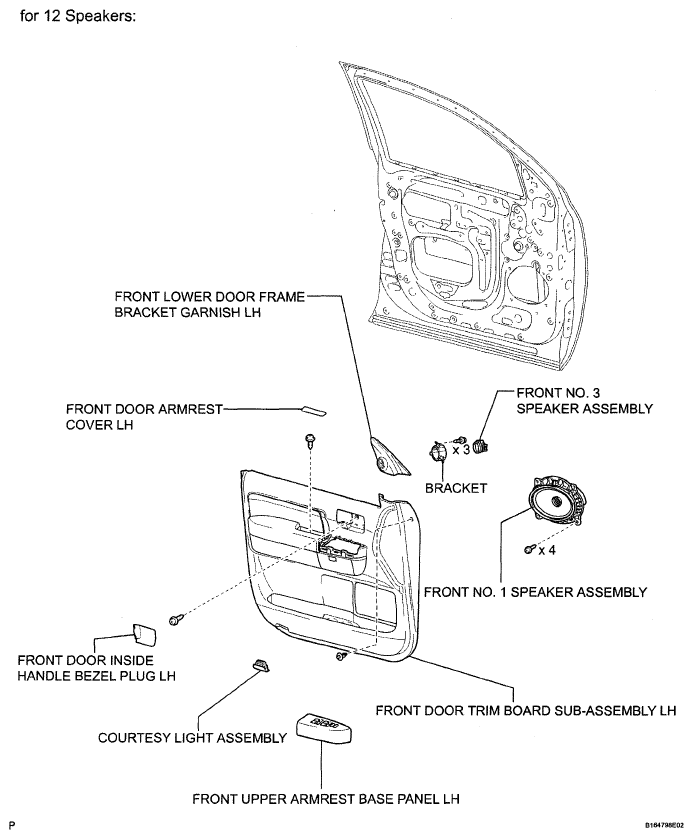

Fig 1: Identifying Front Door Speaker (For CrewMax) Components
G05156414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

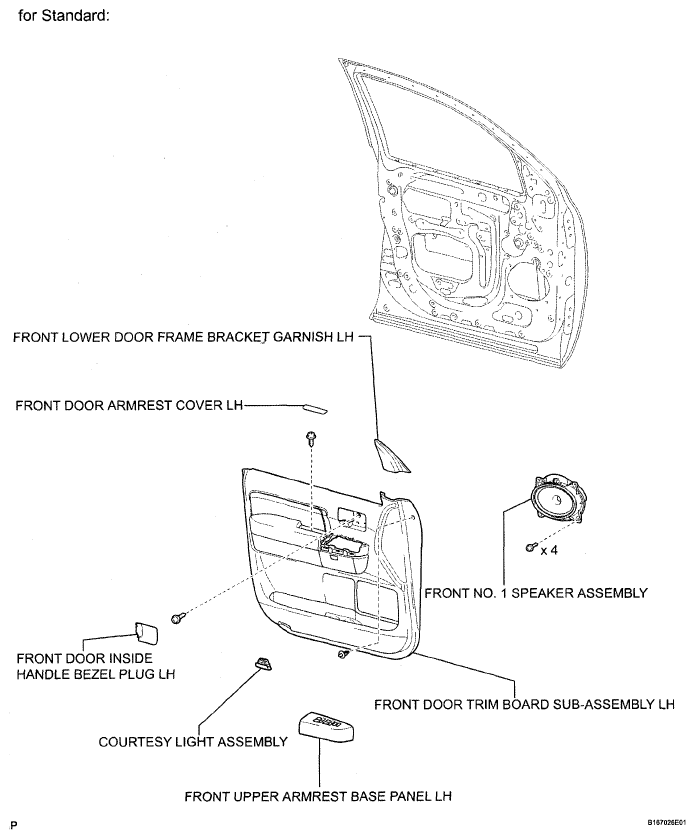

Fig 2: Identifying Front Door Speaker (For Standard) Components
G05156404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
