System Diagram

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

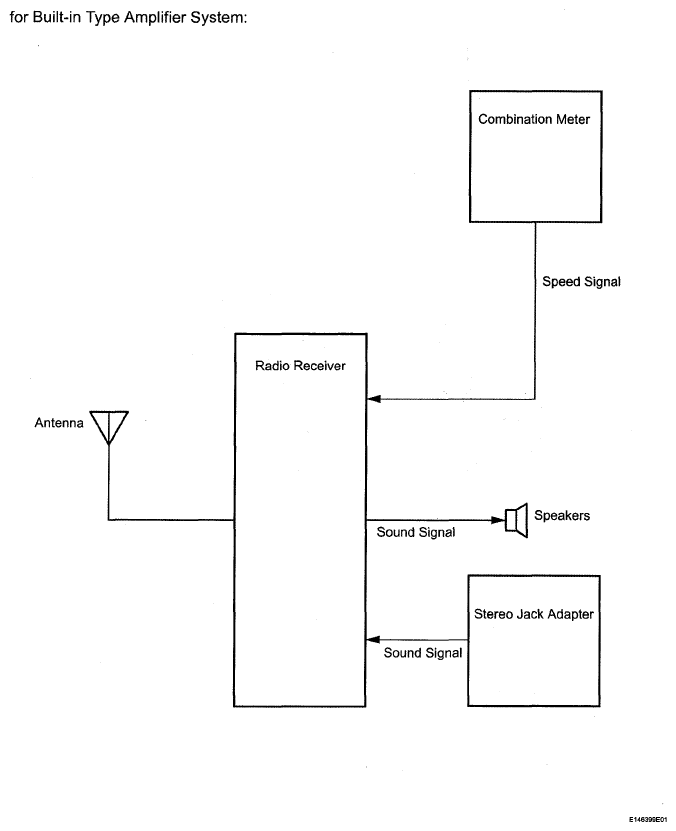

Fig 1: Audio And Visual System Diagram (Built-in Type Amplifier System)
G05156087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

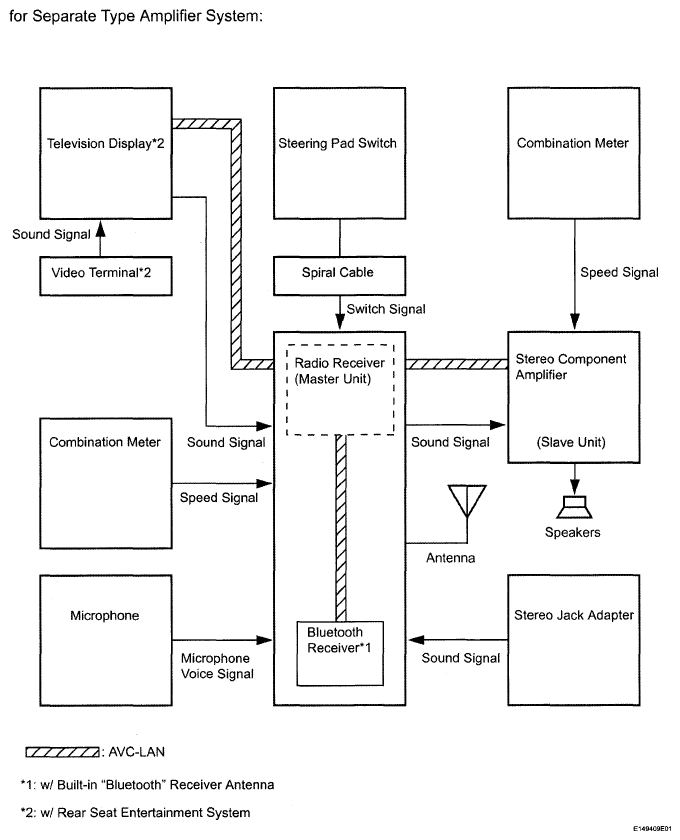

Fig 2: Audio And Visual System Diagram (Separate Type Amplifier System)
G05156211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
