Engine Oil Cooler: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

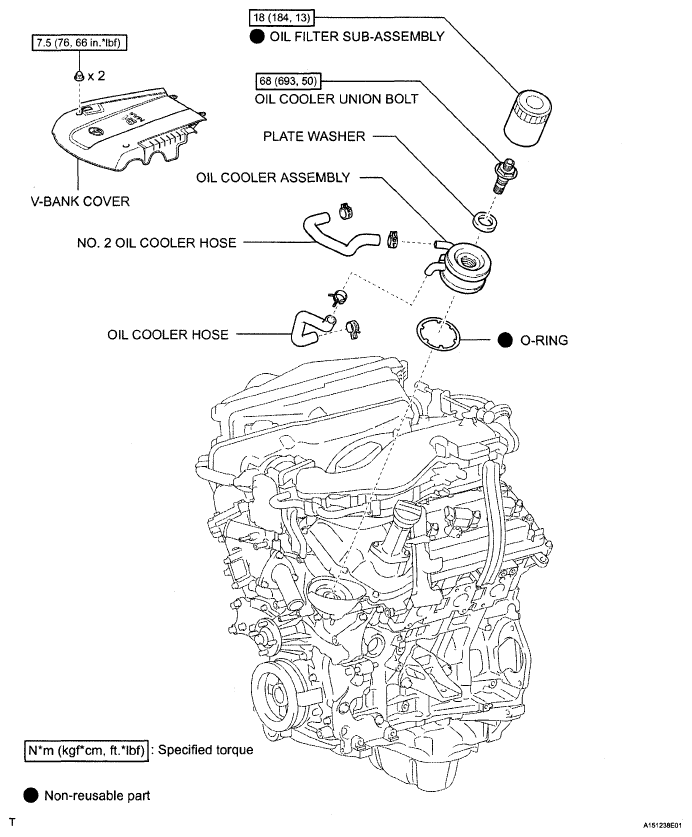

Fig 1: ENGINE OIL COOLER Replacement Components With Torque Specifications
G05153058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
