On-Vehicle Inspection

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR FUEL PUMP OPERATION AND FUEL LEAKS
1. Connect the Techstream to the DLC3.
  1. Turn the ignition switch ON.
    NOTE: Do not start the engine.
  2. Push the Techstream main switch ON.
  3. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed.
2. Check fuel pump operation.
  1. Check for pressure in the fuel inlet tube from the fuel line. Check that the sound of fuel flowing in the fuel tank can be heard.
    If there is no sound, check the integration relay, fuel pump, ECM and wiring connector.
3. Check for fuel leaks.
  1. Check that there are no fuel leaks after performing maintenance anywhere on the system.
    If there are fuel leaks, repair or replace parts as necessary.
CHECK FUEL PRESSURE
1. Check that the battery voltage is 11 to 14 V.
2. Discharge the fuel system pressure (see PRECAUTION ).
3. Disconnect the cable from the negative (-) battery terminal.
  NOTE:
  - Some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
  - After the ignition switch is turned OFF, the navigation system requires approximately 90 seconds to record various types of memory and settings. As a result, after turning the ignition switch OFF, wait 90 seconds or more before disconnecting the cable from the negative (-) battery terminal.
4. Remove the fuel pipe clamp from the fuel tube connector.

  Fig 1: Identifying Fuel Pipe Clamp From Fuel Tube Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Pinch and pull the No. 1 fuel hose (fuel tube connector) to disconnect it.

  Fig 2: Pinching And Pulling No. 1 Fuel Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  CAUTION:
  - Always read the precautions (see PRECAUTION ) before disconnecting the fuel tube connector (quick type).
  - The fuel tube may spray fuel as a result of pressure that remains in it. Do not allow fuel to be sprayed in the engine compartment.

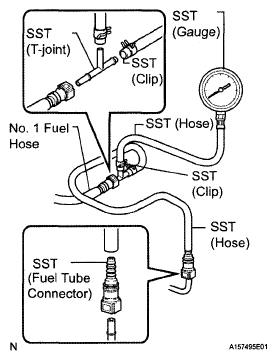

6. Install SST (pressure gauge) as shown in the illustration.

  Fig 3: Installing SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09268-31011 (90467-13001, 95336-08070, 09268-41500, 09268-41120), 09268-45014 (09268-41200, 09268-41220)
7. Wipe off any gasoline.
8. Reconnect the cable to the negative (-) battery terminal.
9. Operate the fuel pump.
  1. Connect the Techstream to the DLC3.
  2. Turn the ignition switch ON.
    NOTE: Do not start the engine.
  3. Push the Techstream main switch ON.
  4. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed.
10. Measure the fuel pressure.
  Standard fuel pressure:

  281 to 287 kPa (2.87 to 2.93 kgf/cm ² , 41 to 42 psi)

  If the pressure is higher than the specification, replace the fuel pressure regulator.

  If the pressure is lower than the specification, check the fuel hoses and connections, fuel pump, fuel filter and fuel pressure regulator.
11. Start the engine.
12. Measure the fuel pressure.
  Standard fuel pressure:

  281 to 287 kPa (2.87 to 2.93 kgf/cm ² , 41 to 42 psi)

  If the pressure is not as specified, check the fuel pump, pressure regulator and/or injectors.
13. Stop the engine.
14. Check that the fuel pressure remains as specified for 5 minutes after the engine has stopped.
  Standard fuel pressure:

  147 kPa (1.5 kgf/cm ² , 21 psi) or more

  If the pressure is not as specified, check the fuel pump, pressure regulator and/or injectors.
15. After checking the fuel pressure, disconnect the cable from the negative (-) battery terminal and carefully remove SST and the fuel tube connector to prevent gasoline from spraying.
16. Reconnect the No. 1 fuel hose (fuel tube connector).
17. Check for fuel leak.
  1. Check that there are no fuel leaks after performing maintenance anywhere on the system.
    If there are fuel leaks, repair or replace parts as necessary.
