Air Cleaner: Installation

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL PURGE LINE HOSE
1. Attach the 3 hose clamps.
2. Install the purge line hose.

  Fig 1: Identifying Purge Line Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CASE SUB-ASSEMBLY
1. Install the air cleaner case with the 2 bolts.
2. Tighten the hose clamp.
  HINT:

  Tighten the hose clamp until it reaches the specified protrusion height labeled A shown in the illustration.

  Standard protrusion height: Below 0.5 mm (0.0197 in.)

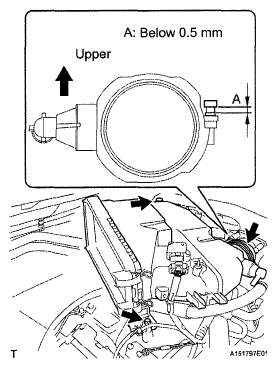

  Fig 2: Identifying Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 2 wire harness clamps.
4. Connect the MAF meter connector.
5. Connect the vacuum hose.
6. Attach the hose clamp.
7. Connect the No. 2 ventilation hose.
INSTALL AIR CLEANER ELEMENT
INSTALL AIR CLEANER CAP SUB-ASSEMBLY
INSTALL NO. 2 AIR CLEANER HOSE
HINT:

Securely insert the pin of the No. 2 air cleaner hose into the grommet.

Fig 5: Inserting Pin Of No. 2 Air Cleaner Hose Into Grommet
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the air cleaner hose with the 2 bolts.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
2. Tighten the hose clamp.
  Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  HINT:

  Tighten the clamp until the end of the clamp band is within both limit marks.

  Fig 6: Identifying Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-BANK COVER (see INSTALLATION )
