INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY
1. Check the LO operation.
  1. Connect the positive (+) battery lead to terminal 1 (+1) of the connector and the negative (-) battery lead to terminal 5 (E), and check that the motor operates at low speed (LO).
    OK: Motor operates at low speed (LO).

    If the result is not as specified, replace the motor assembly.

    Fig 1: Inspecting Windshield Wiper Motor Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the HI operation.
  1. Connect the positive (+) battery lead to terminal 4 (+2) of the connector and the negative (-) battery lead to terminal 5 (E), and check that the motor operates at high speed (HI).
    OK: Motor operates at high speed (HI).

    If the result is not as specified, replace the motor assembly.
3. Check the automatic stop operation.
  1. Connect the positive (+) battery lead to terminal 1 (+1) of the connector and the negative (-) battery lead to terminal 5 (E). With the motor operating at low speed (LO), disconnect terminal 1 (+1) to stop the wiper motor operation at any position other than the automatic stop position.
  2. Using SST, connect terminals 3 (S) and 1 (+1). Then connect the positive (+) battery lead to terminal 2 (B) of the connector to restart the motor operation at low speed (LO).
    SST 09843-18040
  3. Check that the motor stops automatically at the automatic stop position.
    OK: Automatically stops.

    If the result is not as specified, replace the motor assembly.

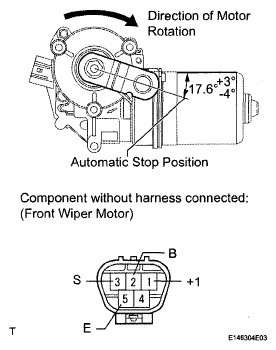

    Fig 2: Checking Automatic Stop Operation
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
