Section 202 (Engine Control System (2UZ-FE) - System And Component Testing, On-Vehicle Inspection, Removal, Inspection And Installation)
>>
VVT Sensor
>>
Components
VVT Sensor: Components
WARNING:
This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

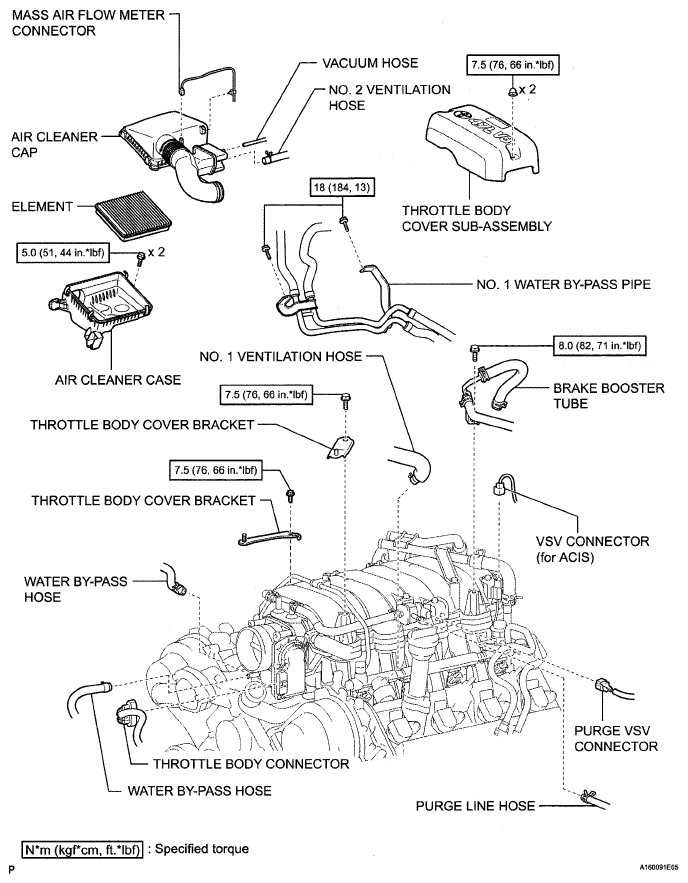

Fig 1: VVT Sensor Replacement Replacement Components With Torque Specifications (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: VVT Sensor Replacement Replacement Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

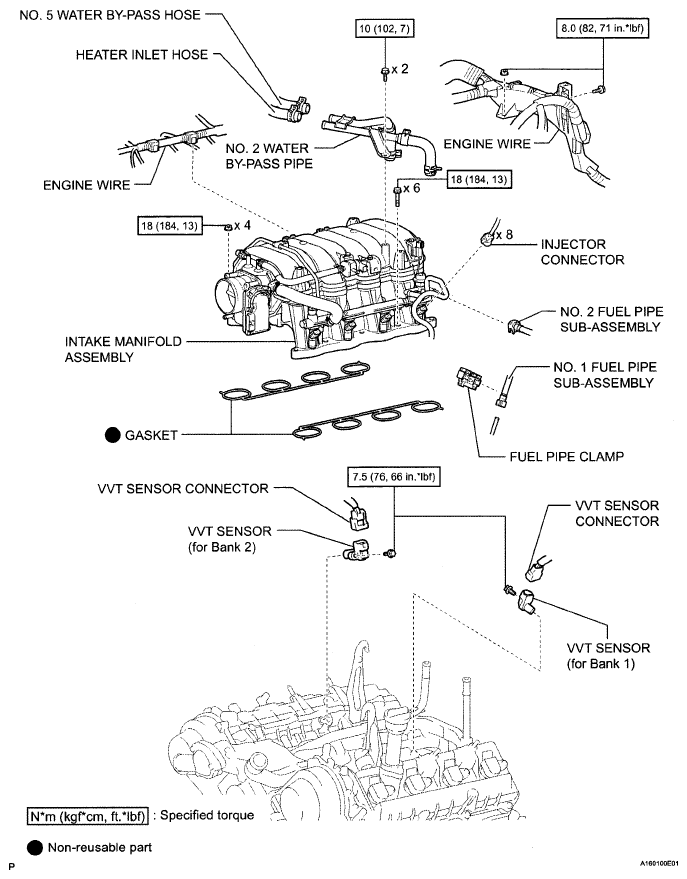

Fig 3: VVT Sensor Replacement Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
