Switches And Their Control Function

WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.

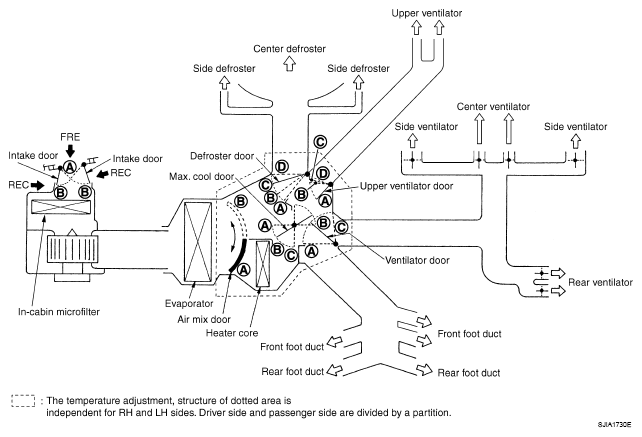

Fig 1: Switches System Diagram
G05213920Courtesy of NISSAN MOTOR CO., U.S.A.

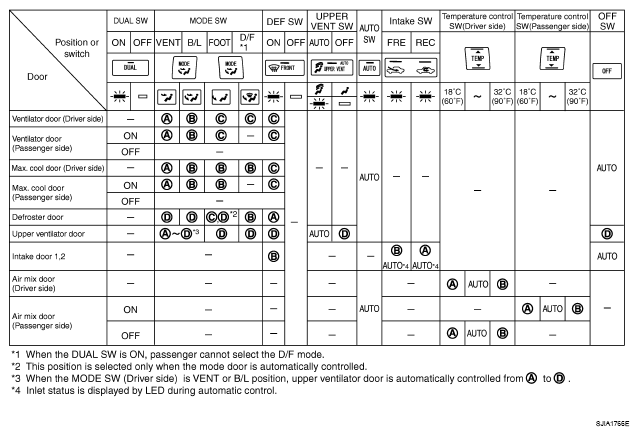

Fig 2: Switches Function Chart
G05213921Courtesy of NISSAN MOTOR CO., U.S.A.
