Description of Air Conditioner LAN Control System
WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.
The LAN (Local Area Network) system consists of unified meter and A/C amp., mode door motors, air mix door motors, upper ventilator door motor and intake door motor.

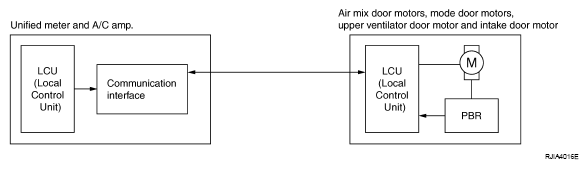

A configuration of these components is shown in the figure below.
