WITHOUT NAVIGATION : Wiring Diagram - AV -/Base Audio System

NOTE: The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

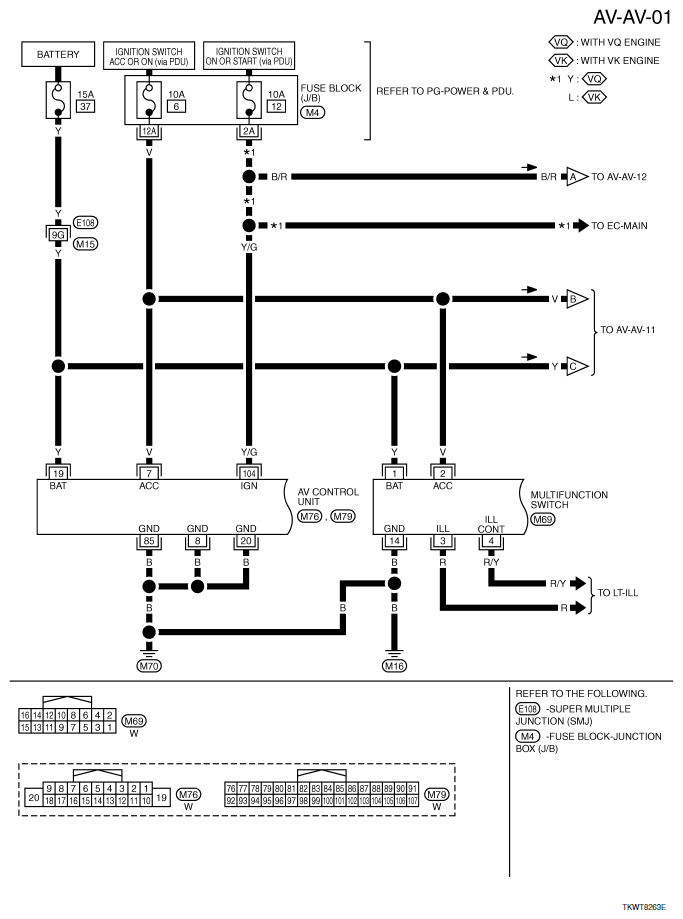

Fig 1: Wiring Diagram - AV-AV-01

Courtesy of NISSAN MOTOR CO., U.S.A.

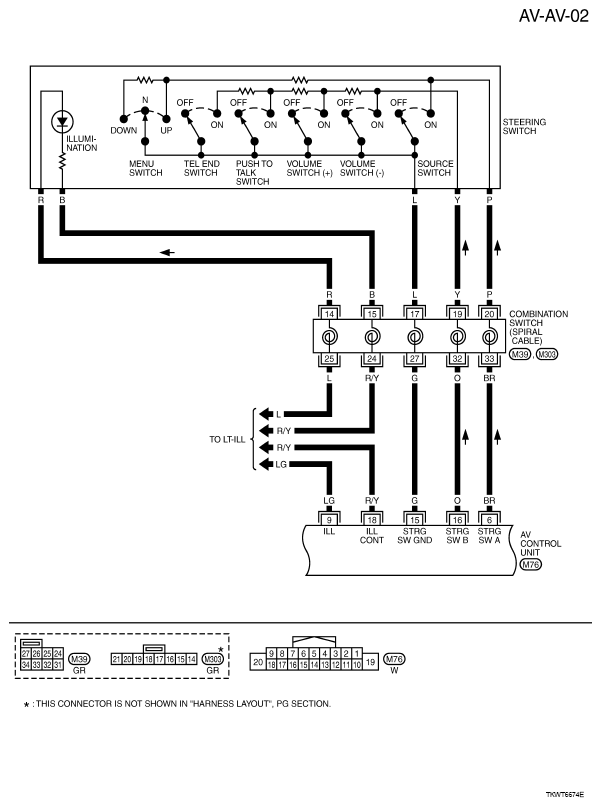

Fig 2: Wiring Diagram - AV-AV-02

Courtesy of NISSAN MOTOR CO., U.S.A.

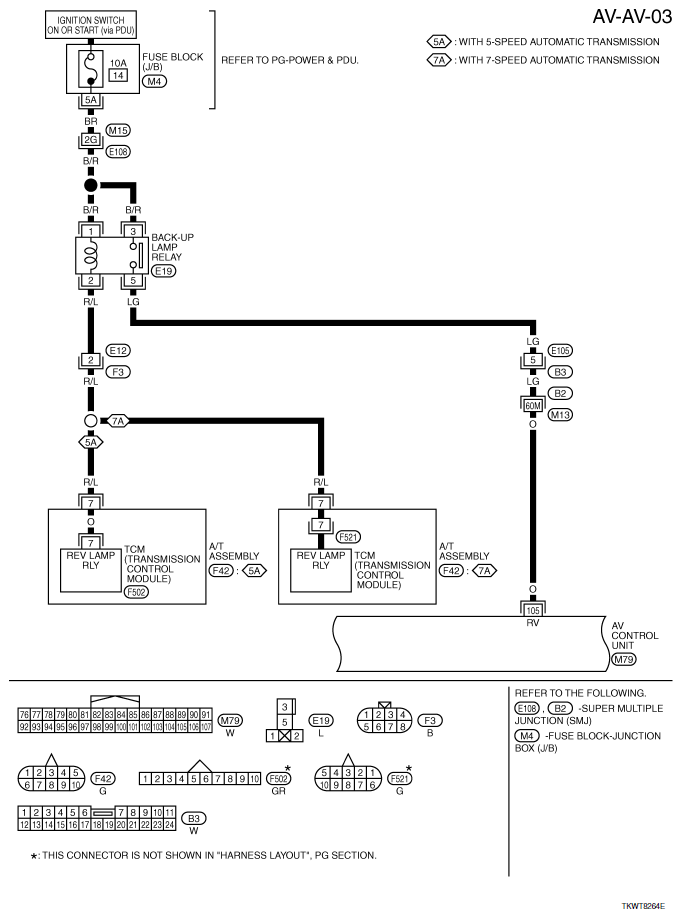

Fig 3: Wiring Diagram - AV-AV-03

Courtesy of NISSAN MOTOR CO., U.S.A.

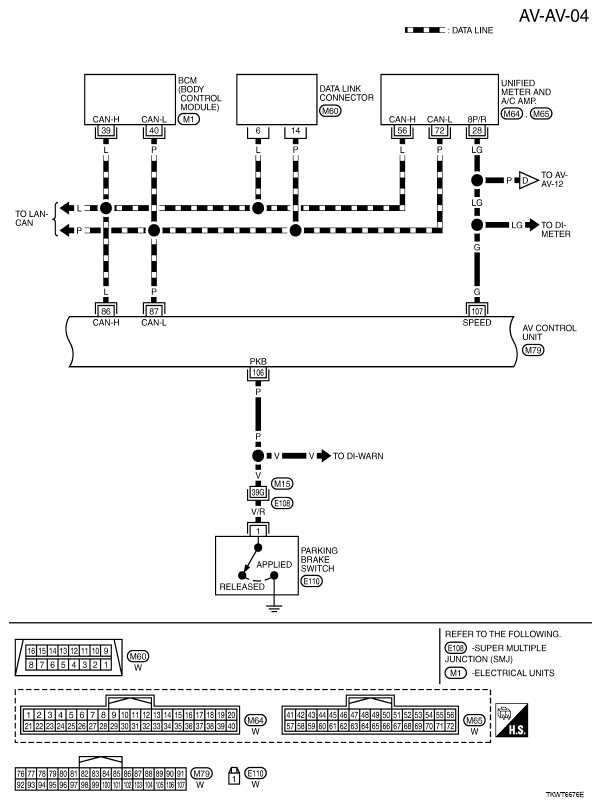

Fig 4: Wiring Diagram - AV-AV-04

Courtesy of NISSAN MOTOR CO., U.S.A.

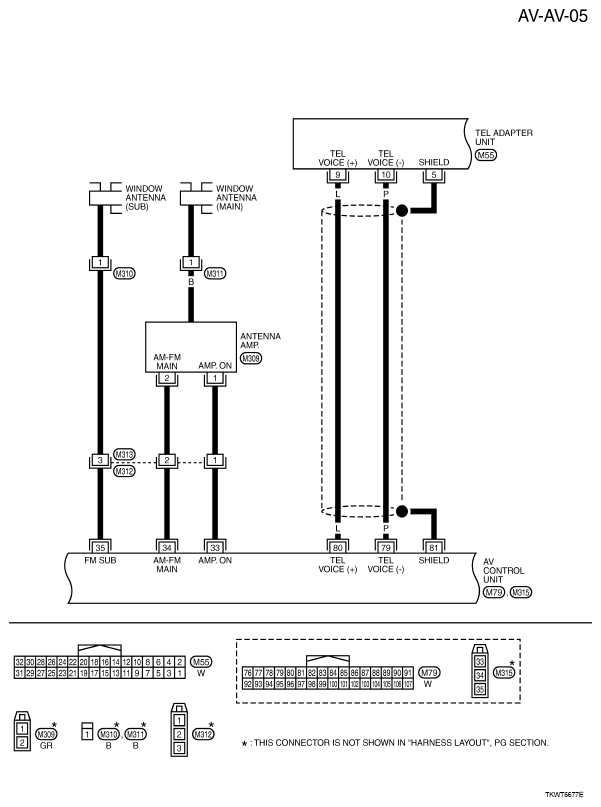

Fig 5: Wiring Diagram - AV-AV-05

Courtesy of NISSAN MOTOR CO., U.S.A.

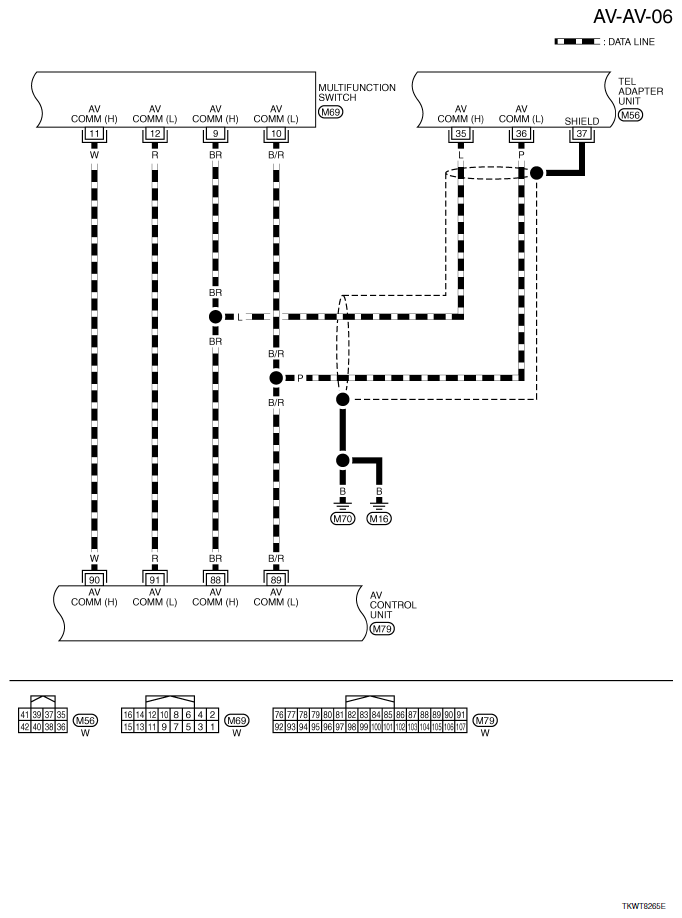

Fig 6: Wiring Diagram - AV-AV-06

Courtesy of NISSAN MOTOR CO., U.S.A.

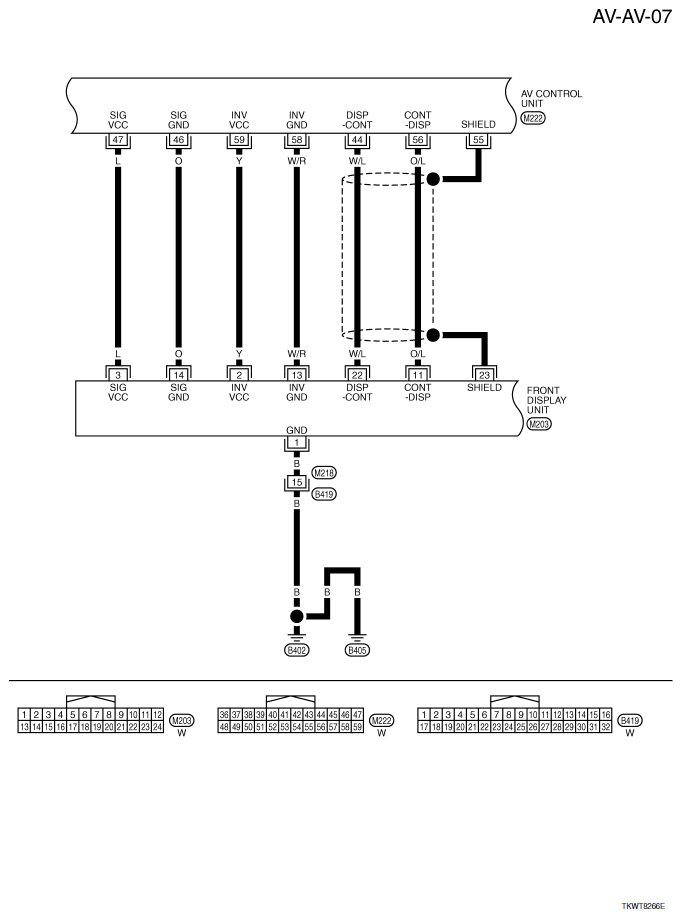

Fig 7: Wiring Diagram - AV-AV-07

Courtesy of NISSAN MOTOR CO., U.S.A.

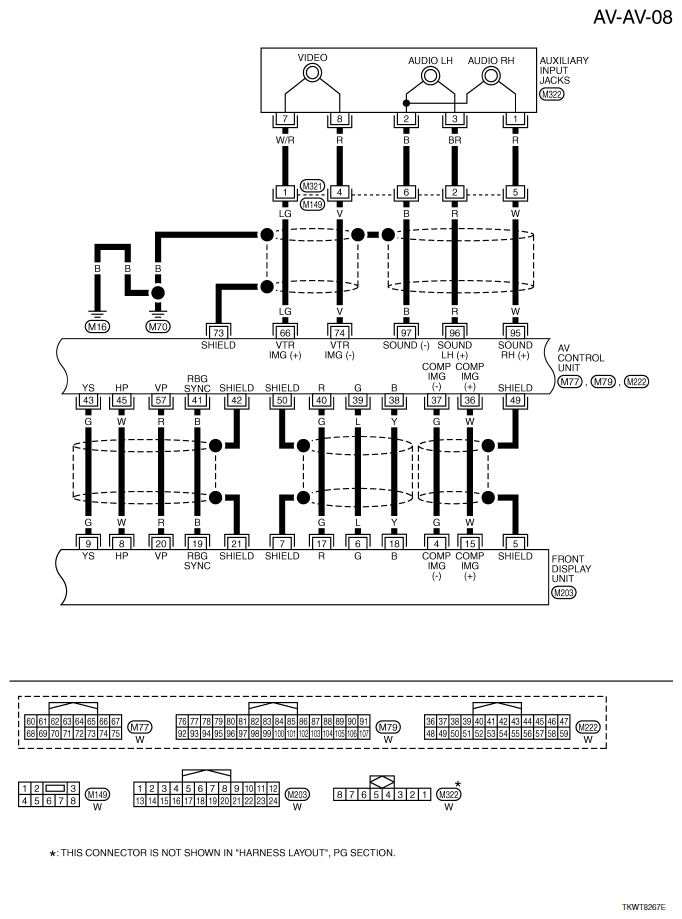

Fig 8: Wiring Diagram - AV-AV-08

Courtesy of NISSAN MOTOR CO., U.S.A.

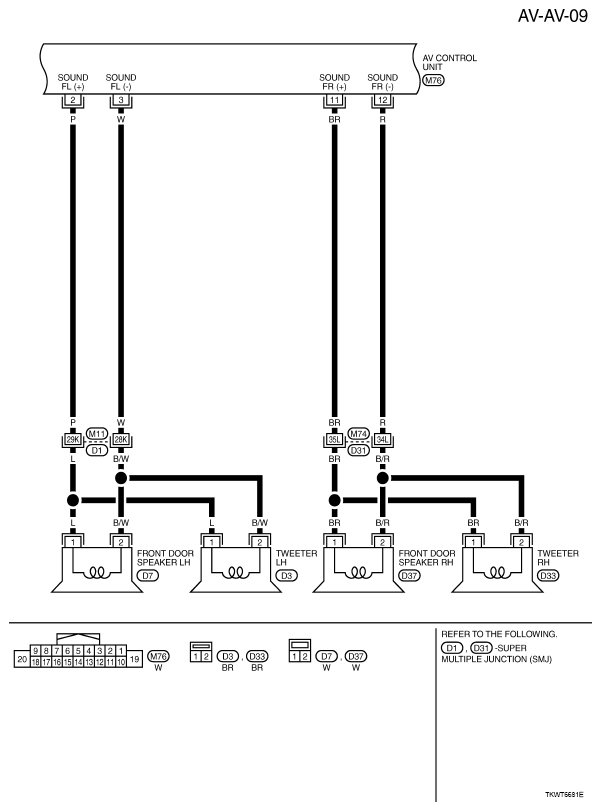

Fig 9: Wiring Diagram - AV-AV-09

Courtesy of NISSAN MOTOR CO., U.S.A.

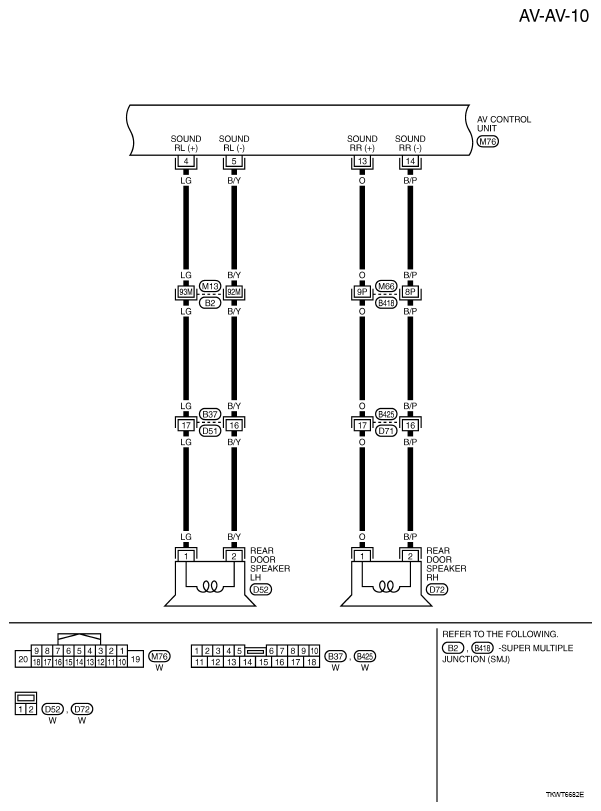

Fig 10: Wiring Diagram - AV-AV-10

Courtesy of NISSAN MOTOR CO., U.S.A.

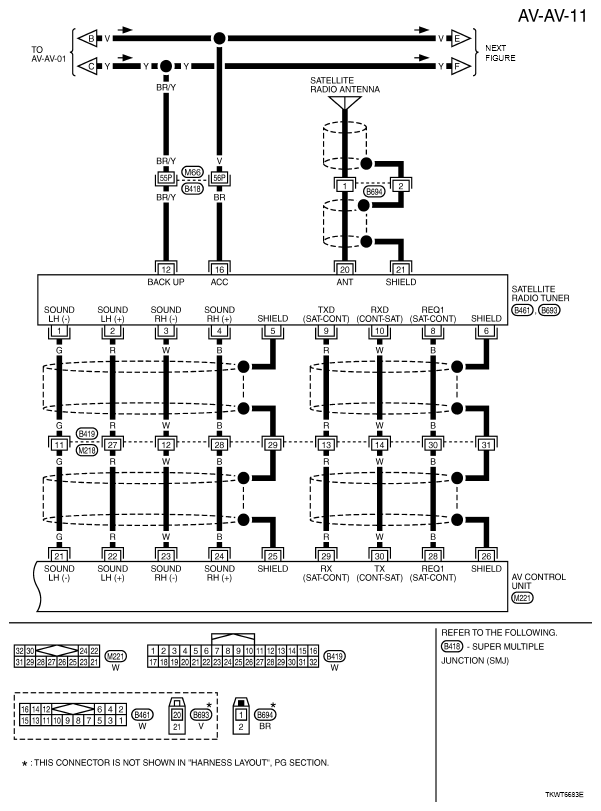

Fig 11: Wiring Diagram - AV-AV-11

Courtesy of NISSAN MOTOR CO., U.S.A.

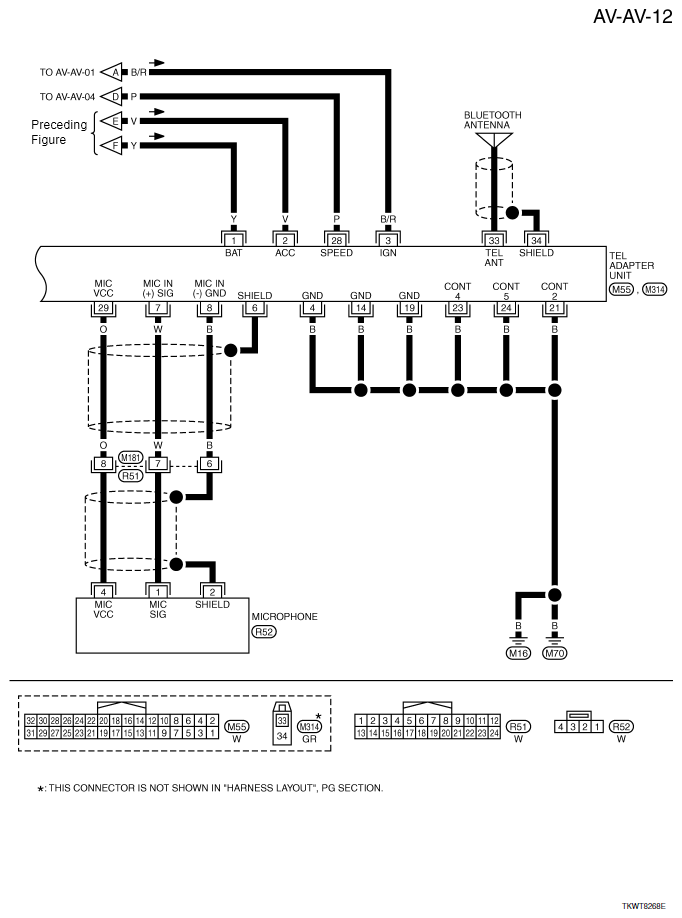

Fig 12: Wiring Diagram - AV-AV-12

Courtesy of NISSAN MOTOR CO., U.S.A.
