CONSULT-III Function and System Application*1

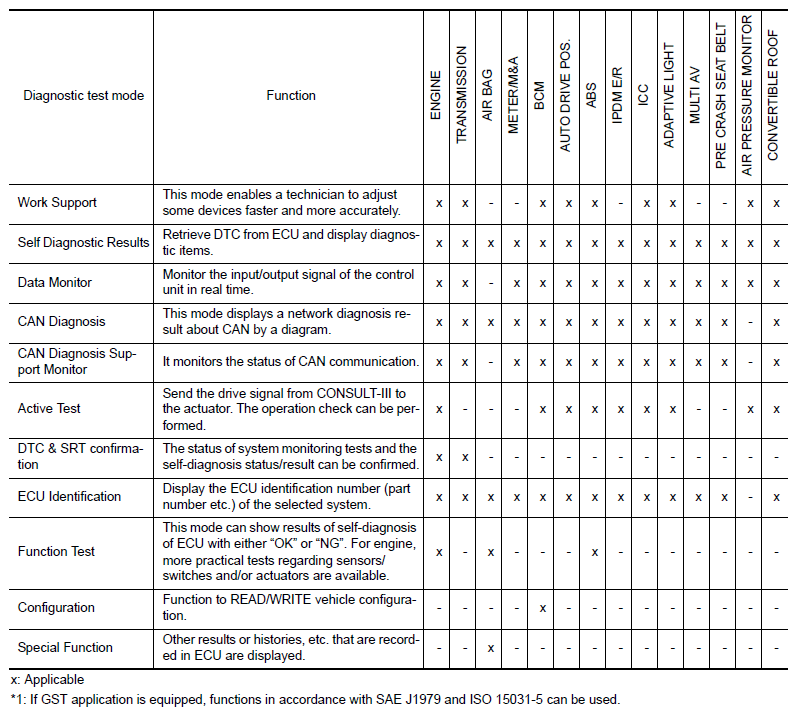

Fig 1: Consult-III Function And System Application Chart

G05972052

Courtesy of NISSAN MOTOR CO., U.S.A.
