Cross-Sectional View

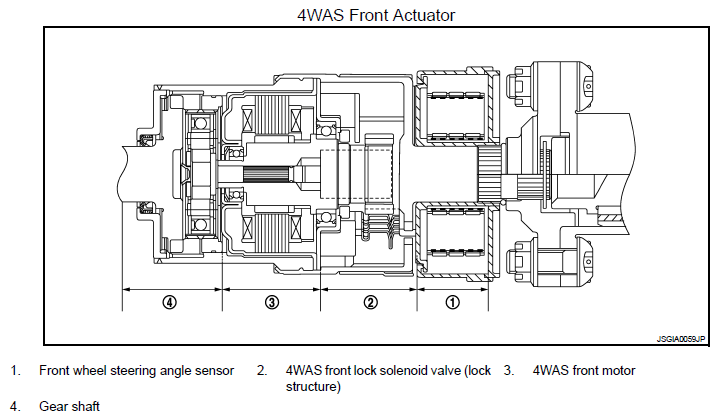

Fig 1: Cross-Sectional View Of 4WAS System - 4WAS Front Actuator
G06323114Courtesy of NISSAN MOTOR CO., U.S.A.

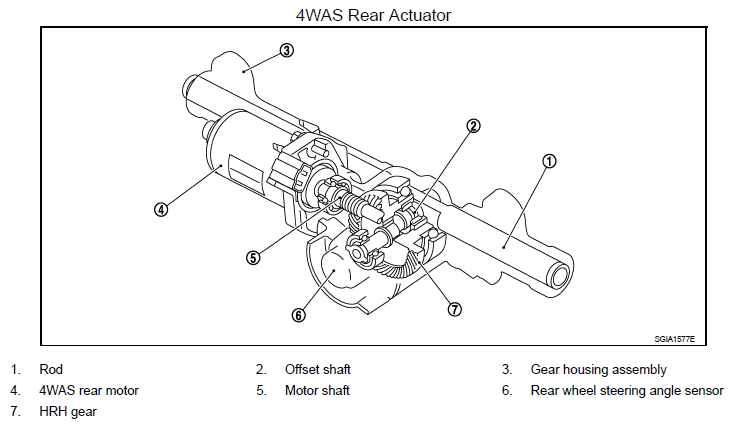

Fig 2: Cross-Sectional View Of 4WAS System - 4WAS Rear Actuator
G06323115Courtesy of NISSAN MOTOR CO., U.S.A.
