Component Parts Location

WARNING: This page is about a different variant/trim than selected.

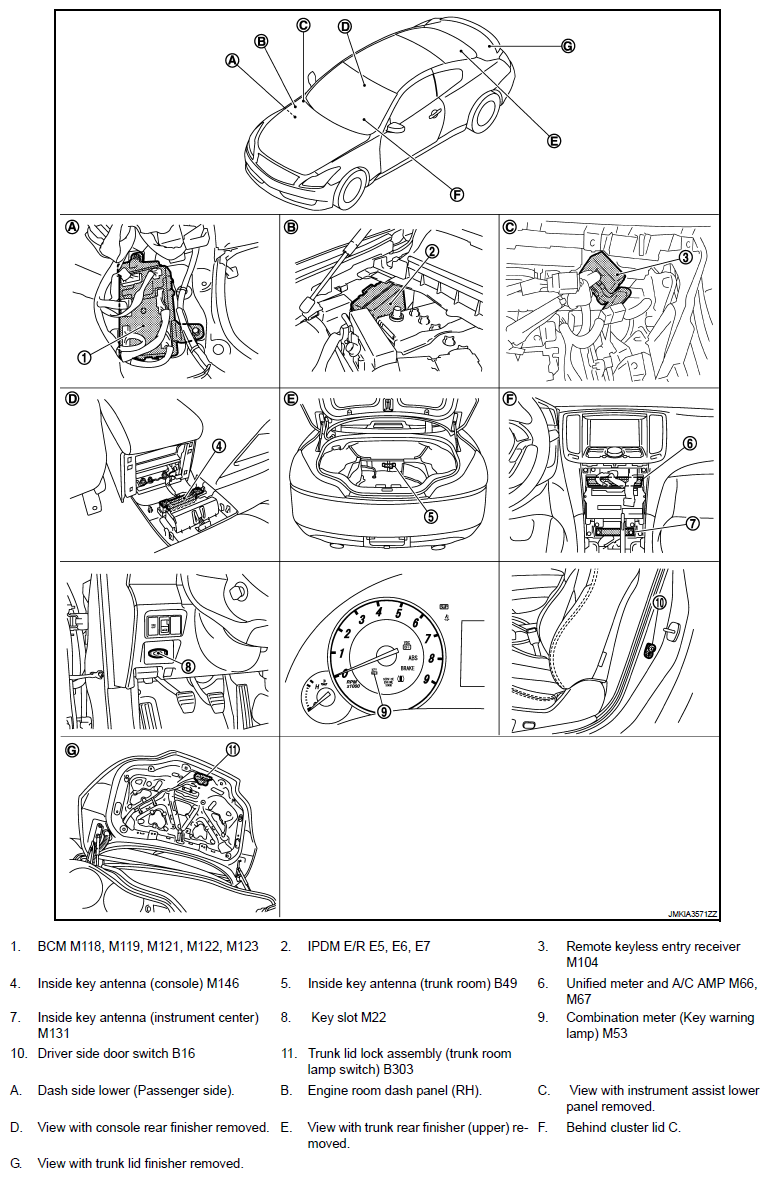

Fig 1: Identifying Intelligent Key System/Engine Start Function Components (1 Of 2)
G06330857Courtesy of NISSAN NORTH AMERICA, INC.

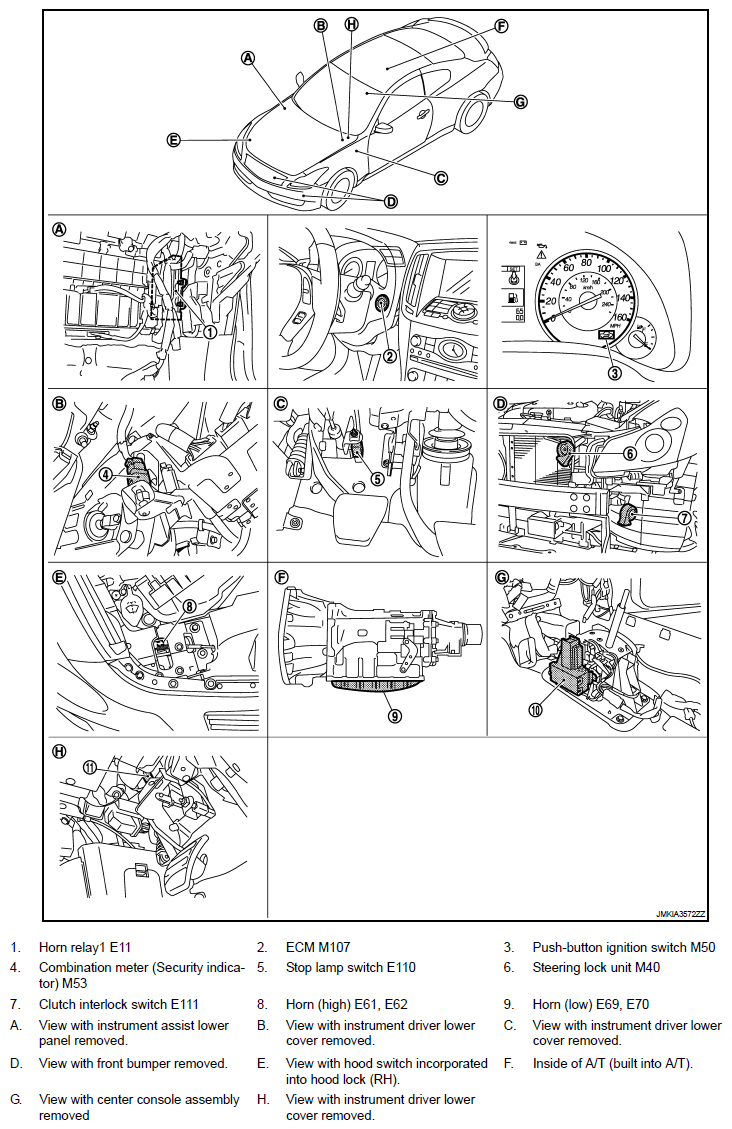

Fig 2: Identifying Intelligent Key System/Engine Start Function Components (2 Of 2)
G06330858Courtesy of NISSAN NORTH AMERICA, INC.
