Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the door finisher.

    Refer to "REMOVAL AND INSTALLATION ".

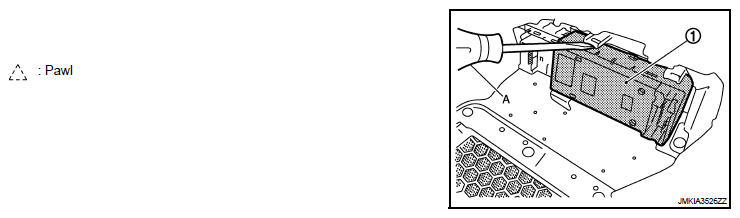

  2. Power window main switch (1) is removed from door finisher using flat-bladed screw driver (A) etc.
Fig 1: Removing Power Window Main Switch
G06331085Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Do not fold the pawl of power window main switch finisher.
NOTE: The same procedure is also performed for power window sub-switch.
