Infiniti
>>
2009
>>
G37 Base, 4D Sedan
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System -- Sedan
>>
On-Vehicle Repair
>>
Fuel Tank
>>
Exploded View
Exploded View

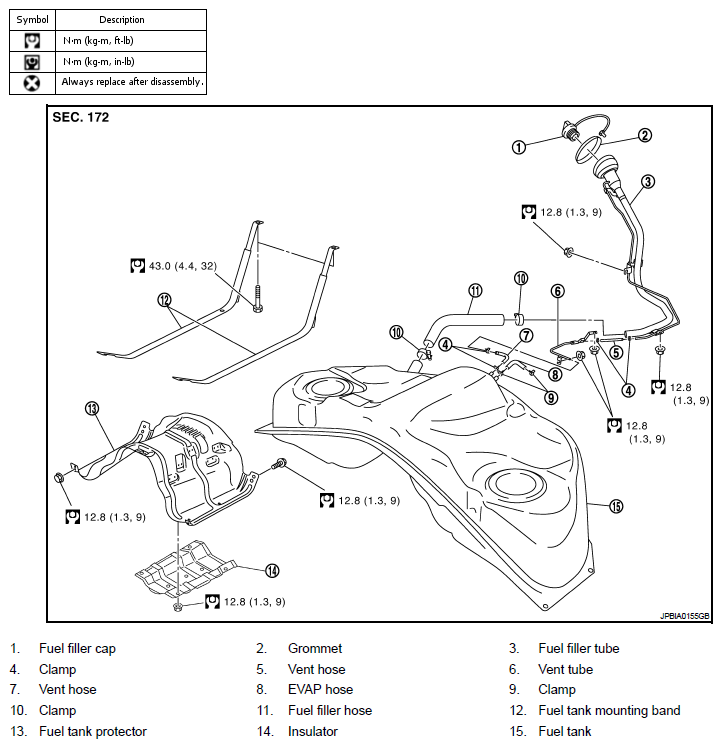

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for to symbols in the figure.
