Abs Actuator And Electric Unit (Control Unit)
>>
Exploded View
Exploded View

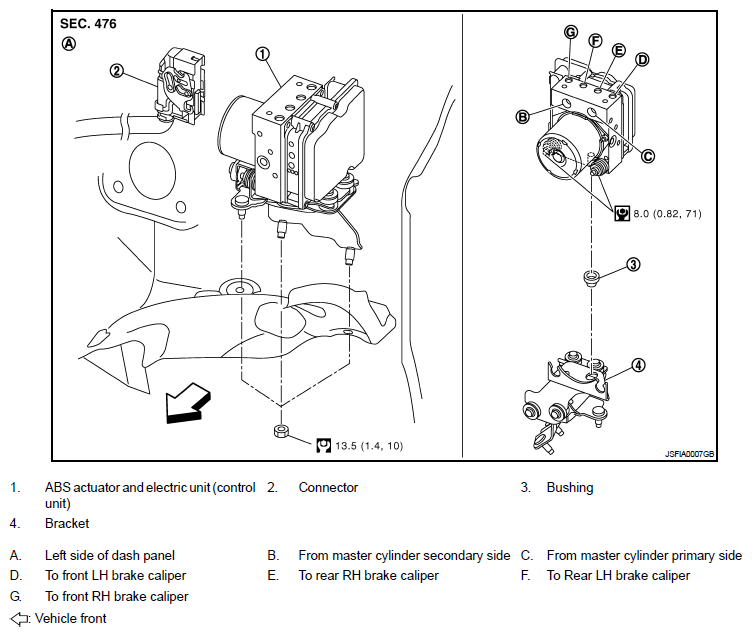

Fig 1: Identifying ABS Actuator And Electric Unit Components (Control Unit)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
GENERAL INFORMATION
"
COMPONENTS
" for symbol marks in the figure.
