Infiniti
>>
2009
>>
G37 Base, 2D Coupe
>>
Repair and Diagnosis
>>
Steering
>>
Steering Control Systems
>>
Steering Control System -- Coupe
>>
With 4WAS
>>
Function Diagnosis
>>
4WAS System
>>
System Diagram
>>
Cross-Sectional View
Cross-Sectional View

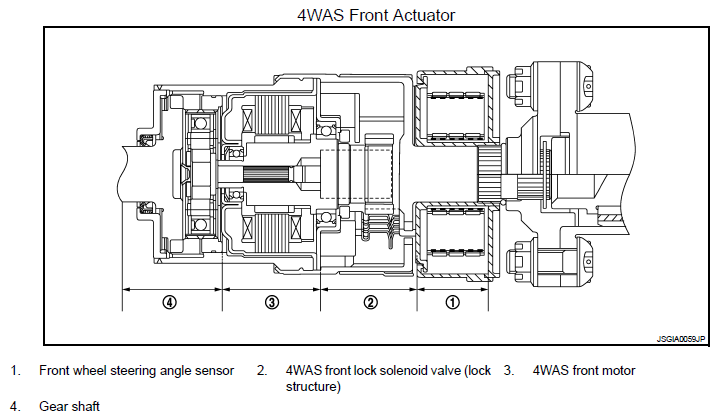

Fig 1: Identifying 4WAS Front Actuator Part Location
Courtesy of NISSAN MOTOR CO., U.S.A.

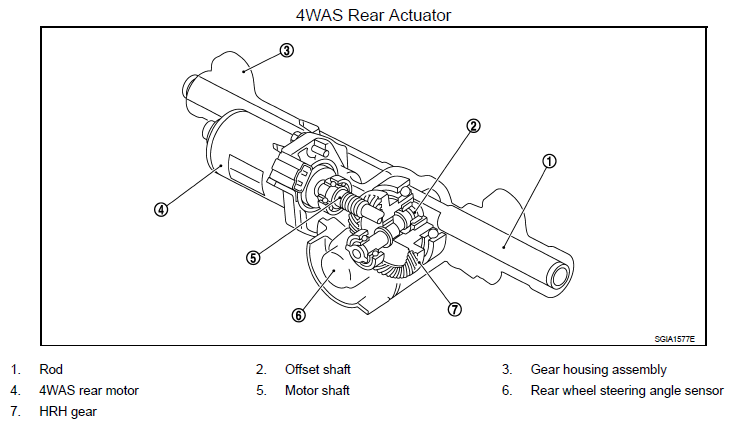

Fig 2: Identifying 4WAS Rear Actuator Part Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
