Component Parts Location

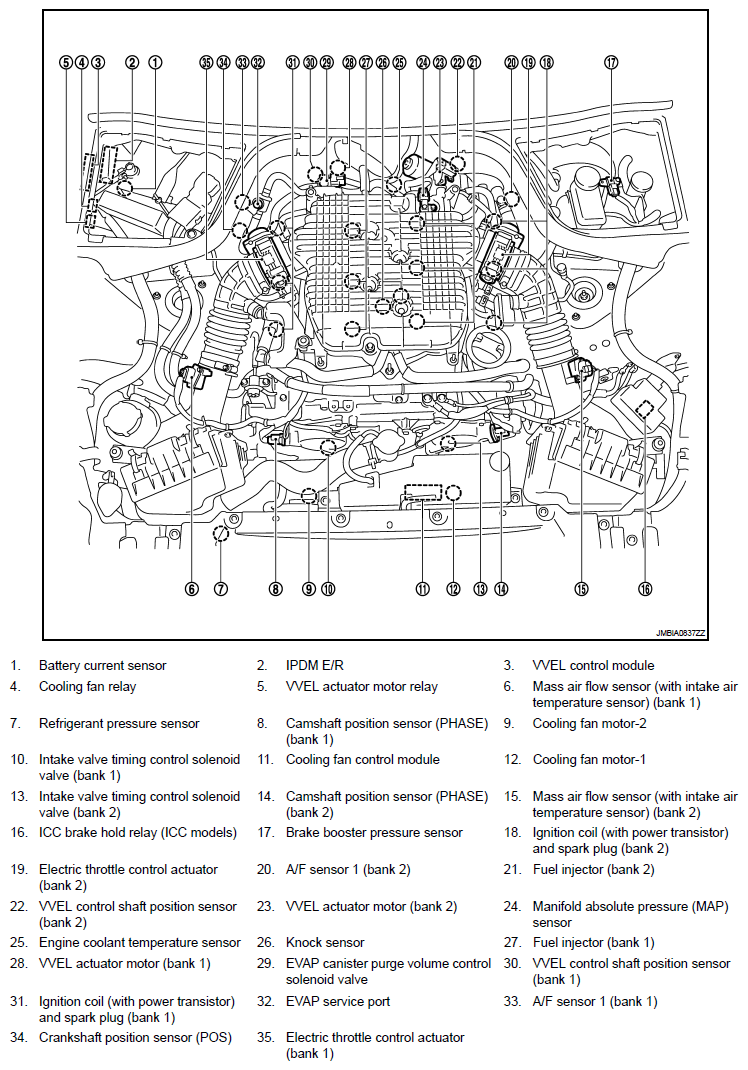

Fig 1: Identifying Air Conditioning Cut Control Component Parts Location

Courtesy of NISSAN MOTOR CO., U.S.A.

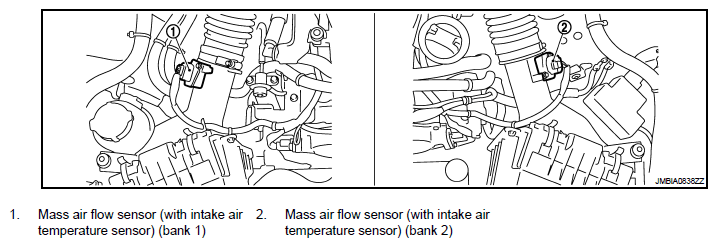

Fig 2: Identifying Mass Air Flow Sensor (With Intake Air Temperature Sensor)

Courtesy of NISSAN MOTOR CO., U.S.A.

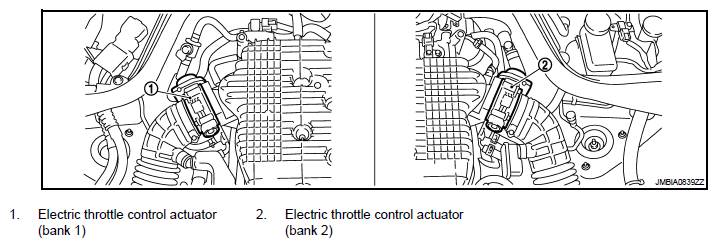

Fig 3: Identifying Electric Throttle Control Actuator (Bank 1 And 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

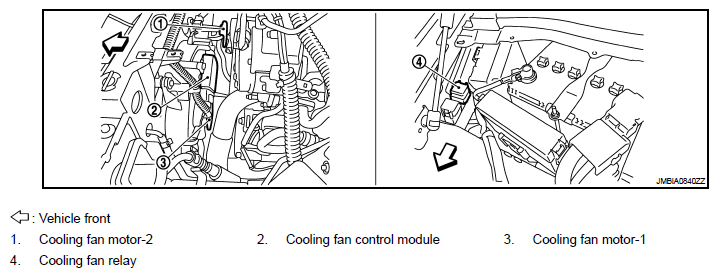

Fig 4: Identifying Cooling Fan Motor-2, Cooling Fan Control Module, Cooling Fan Motor-1 And Cooling Fan Relay

Courtesy of NISSAN MOTOR CO., U.S.A.

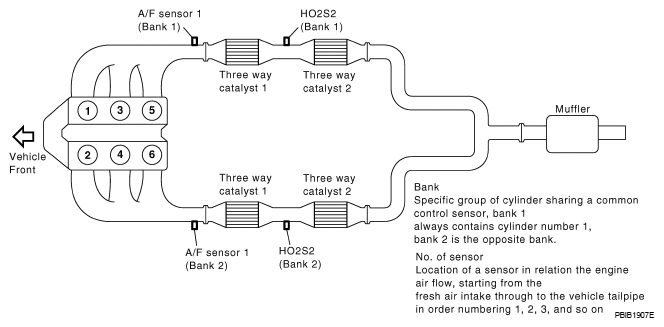

Fig 5: Identifying A/F Sensor 1, HO2S2 And Cylinder Group

Courtesy of NISSAN MOTOR CO., U.S.A.

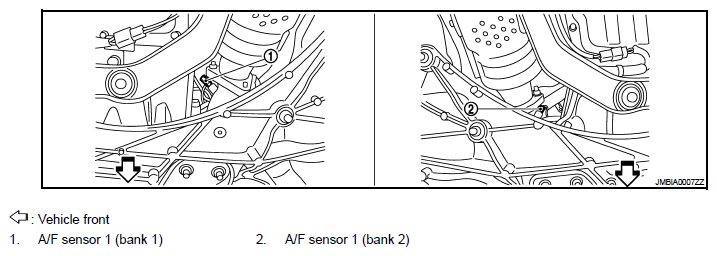

Fig 6: Identifying A/F Sensor 1 (Bank 1 And 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

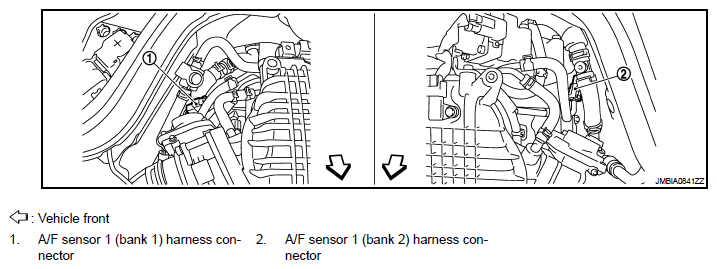

Fig 7: Identifying A/F Sensor 1 Harness Connector (Bank 1 And 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

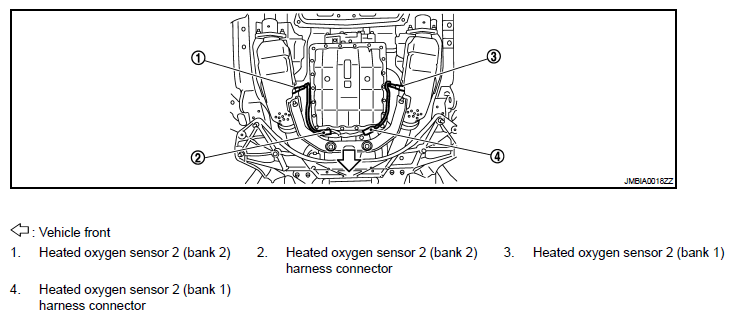

Fig 8: Identifying Heated Oxygen Sensor 2 And Heated Oxygen Sensor 2 Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

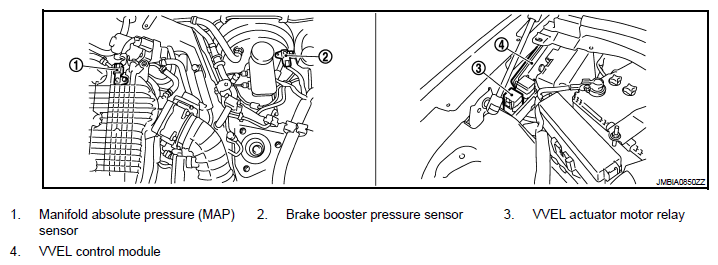

Fig 9: Identifying Manifold Absolute Pressure (MAP) Sensor, Brake Booster Pressure Sensor, VVEL Actuator Motor Relay And VVEL Control Module

Courtesy of NISSAN MOTOR CO., U.S.A.

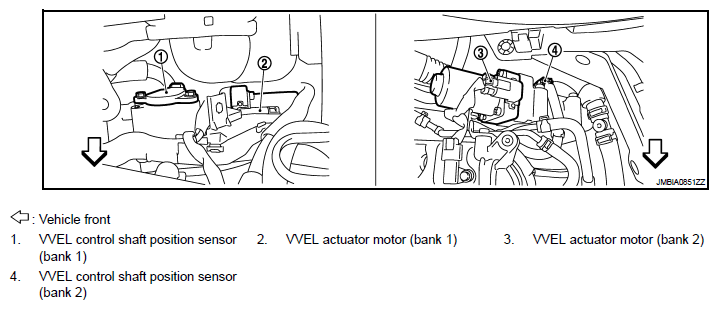

Fig 10: Identifying VVEL Control Shaft Position Sensor, VVEL Actuator Motor And VVEL Control Shaft Position Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

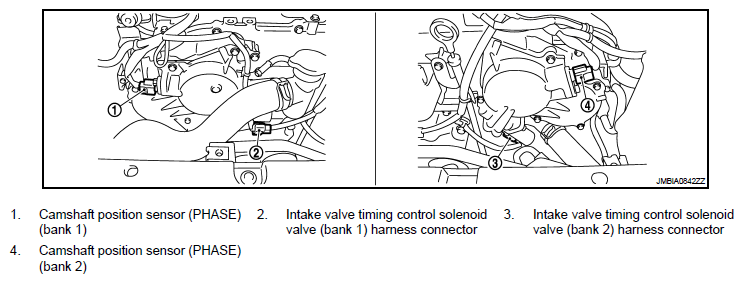

Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

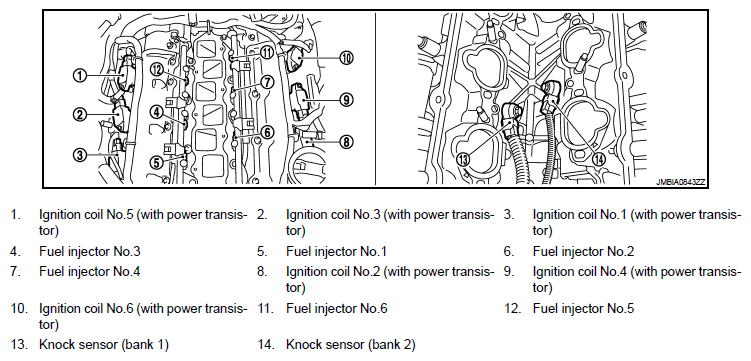

Fig 12: Identifying Ignition Coil No. 5, Ignition Coil No. 3, Ignition Coil No. 1, Fuel Injector No. 3 And Knock Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

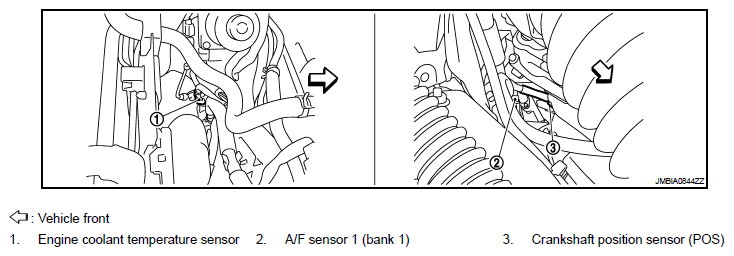

Fig 13: Identifying Engine Coolant Temperature Sensor, A/F Sensor 1 And Crankshaft Position Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

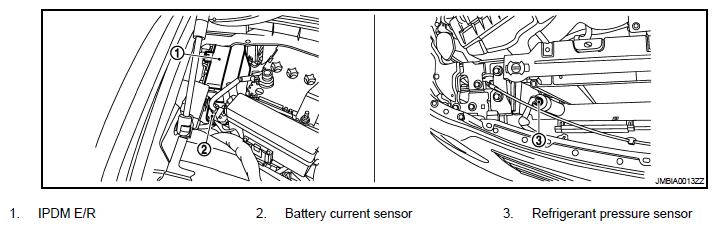

Fig 14: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

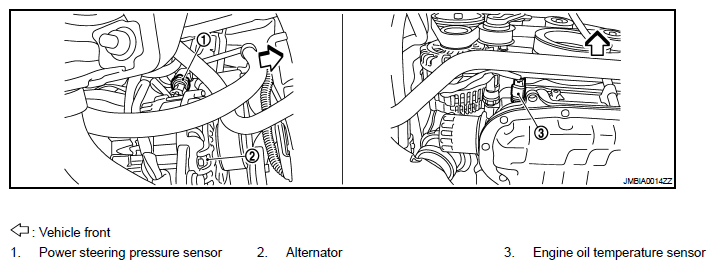

Fig 15: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

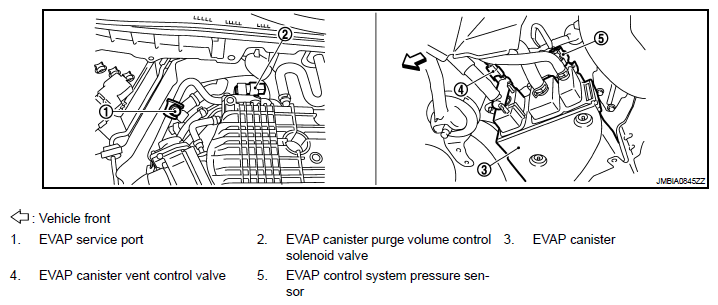

Fig 16: Identifying EVAP Service Port, EVAP Canister Purge Volume Control Solenoid Valve, EVAP Canister, EVAP Canister Vent Control Valve

Courtesy of NISSAN MOTOR CO., U.S.A.

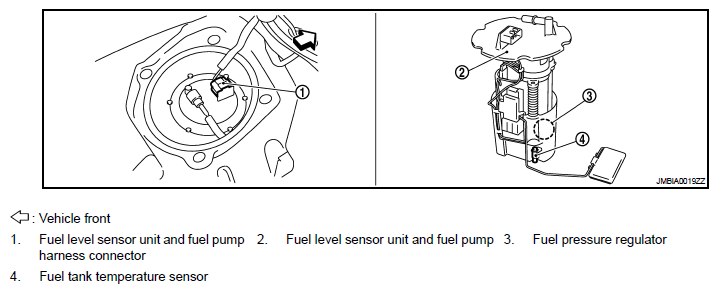

Fig 17: Identifying Fuel Level Sensor Unit And Fuel Pump Harness Connector, Fuel Pressure Regulator And Fuel Tank Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

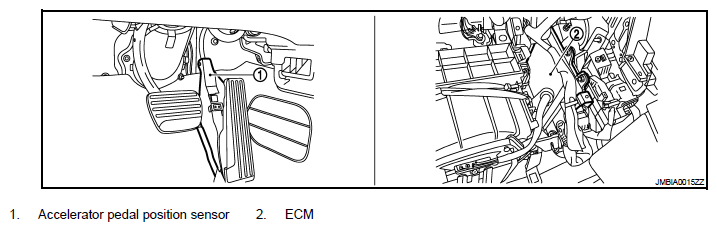

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Snow Mode Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

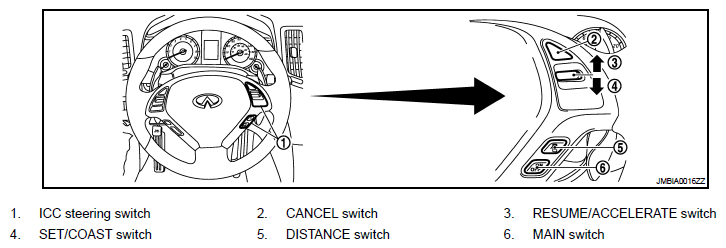

Fig 20: Identifying ICC Steering Switch, Cancel Switch, Resume/Accelerate Switch, Set/Coast Switch, Distance Switch And Main Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

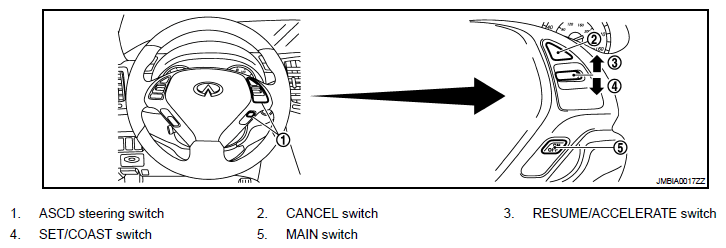

Fig 21: Identifying ASCD Steering Switch, Cancel Switch, Resume/Accelerate Switch, Set/Coast Switch And Main Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

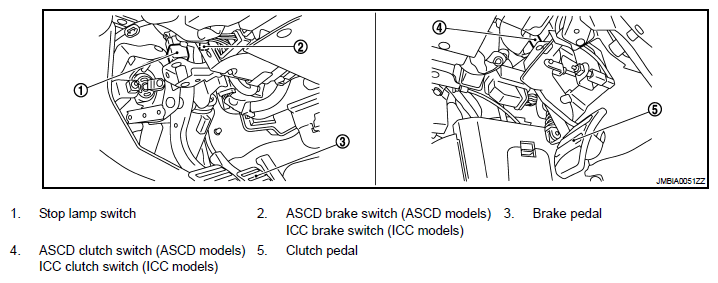

Fig 22: Identifying Stop Lamp Switch, ASCD Brake Switch, Brake Pedal And Clutch Pedal

Courtesy of NISSAN MOTOR CO., U.S.A.
