Home
>>
Infiniti
>>
2009
>>
G37 Base, 2D Convertible
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission -- Convertible
>>
Removal And Installation
>>
Control Rod
>>
Exploded View
Exploded View

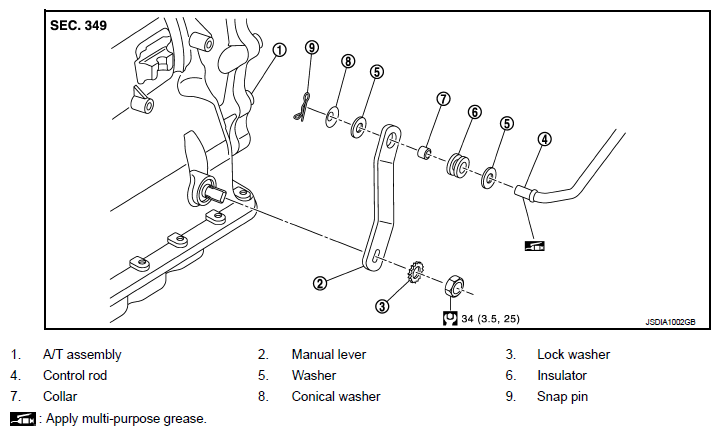

Fig 1: Exploded View Of Control Rod With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
