A/T Shift Selector
>>
Exploded View
Exploded View

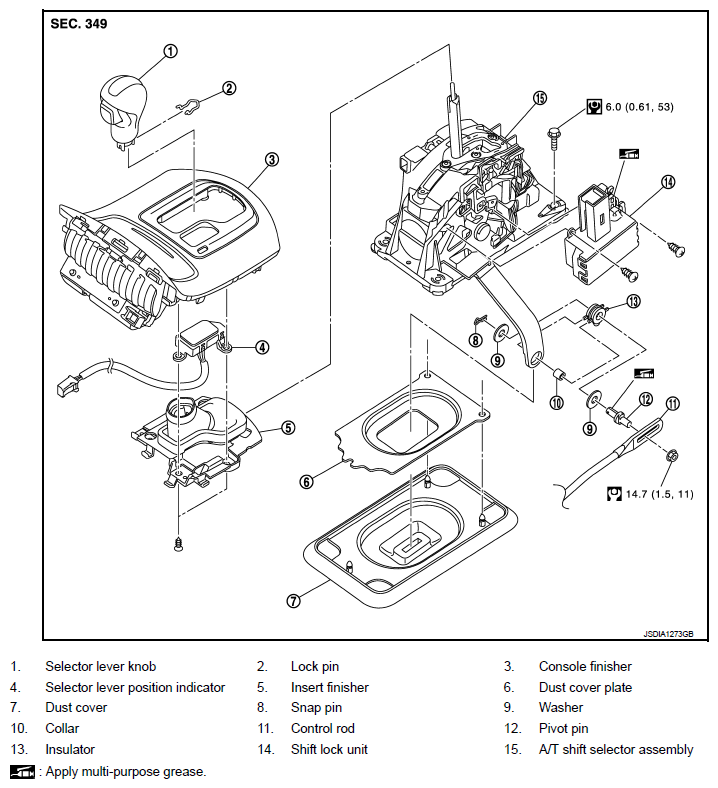

Fig 1: Exploded View Of A/T Shift Selector With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
