Rear SUSPENTION -- Convertible
>>
Removal And Installation
>>
Radius Rod
>>
Exploded View
Exploded View

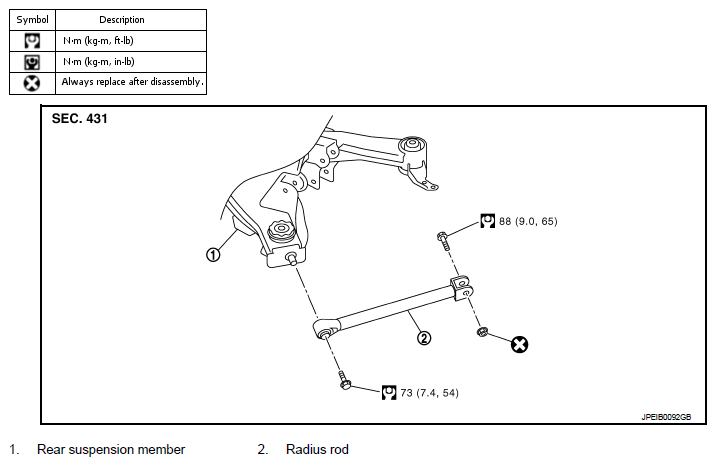

Fig 1: Radius Rod And Rear Suspension Member With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
