Exploded View

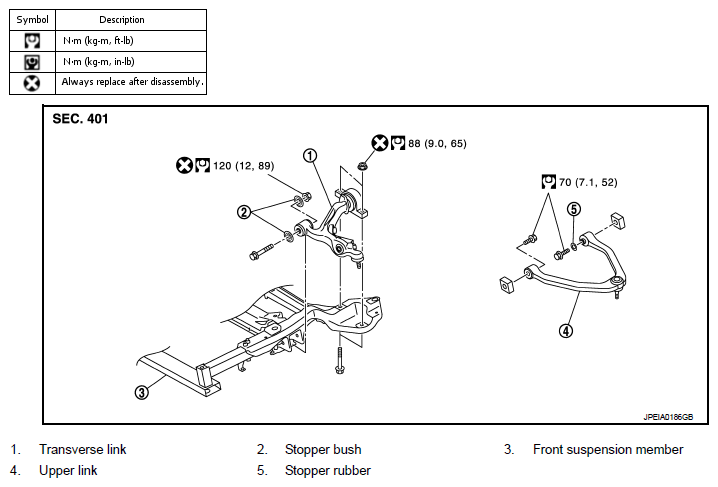

Fig 1: Upper Link Replacement Components With Torque Specifications

G05969830

Courtesy of NISSAN MOTOR CO., U.S.A.
