Home
>>
Infiniti
>>
2009
>>
G37 Base, 2D Convertible
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System -- Convertible
>>
Removal And Installation
>>
Lower Shaft
>>
Exploded View
Exploded View

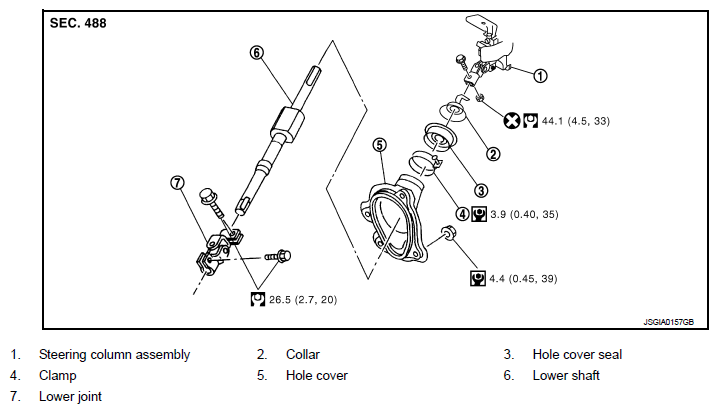

Fig 1: Exploded View Of Lower Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
Components
" for symbols in the figure.
