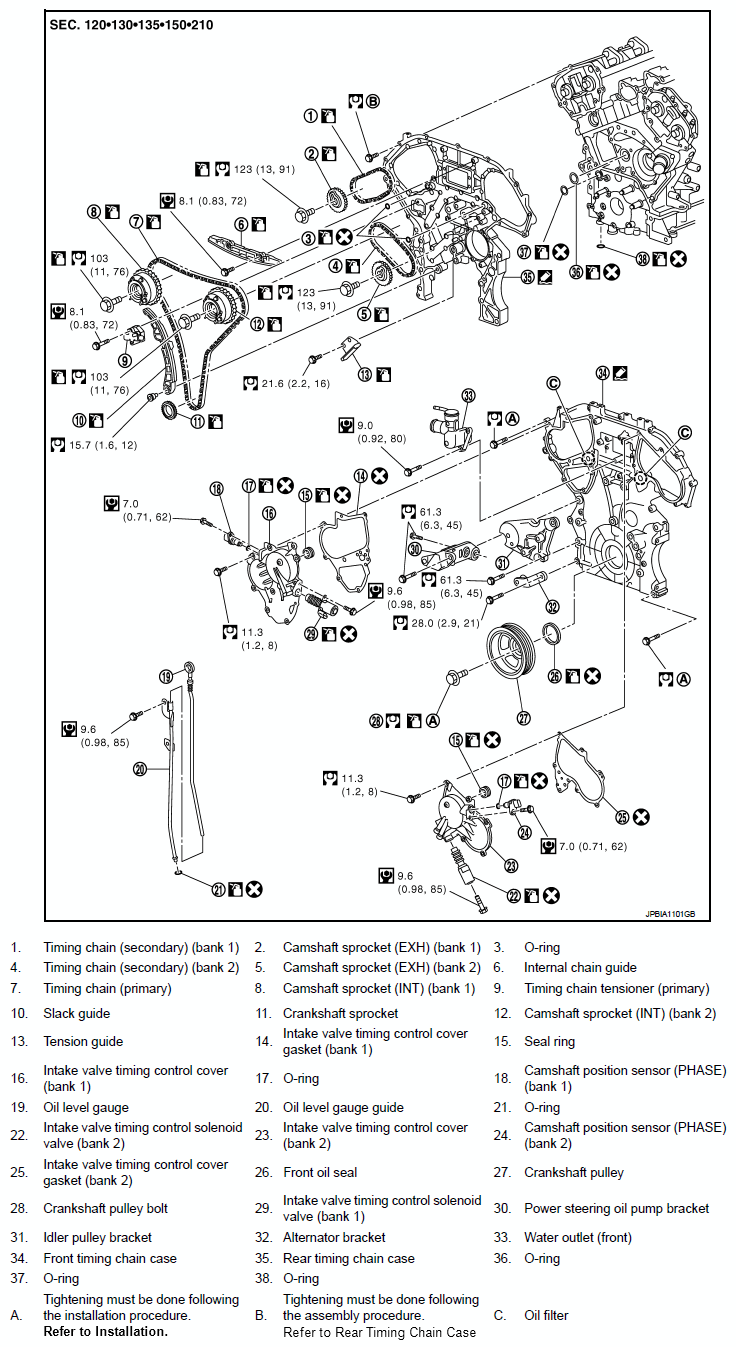

Home >> Infiniti >> 2009 >> G37 Base, 2D Convertible >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical -- Convertible >> Unit Disassembly And Assembly >> Rear Timing Chain Case >> Exploded View
