Engine Mechanical
>>
Engine Lubrication System -- Convertible
>>
Removal And Installation
>>
Oil Pump
>>
Exploded View
Exploded View

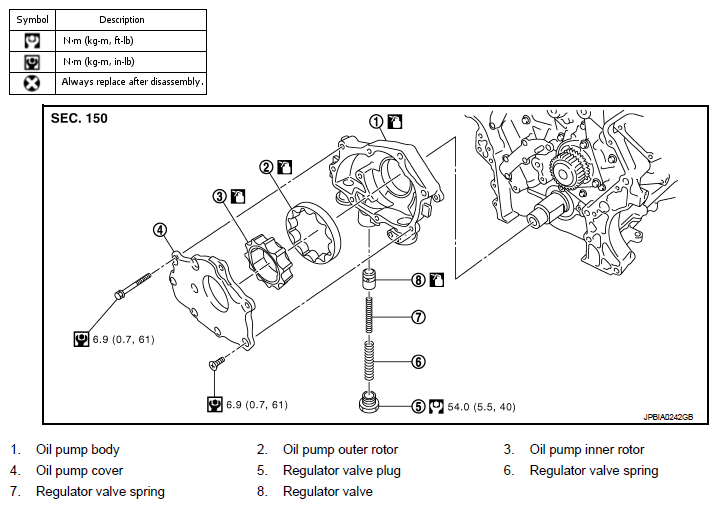

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
"
Components
"
for symbols in the figure.
