Infiniti
>>
2009
>>
G37 Base, 2D Convertible
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System -- Convertible
>>
Removal And Installation
>>
Rear Window Glass
>>
Exploded View
Exploded View

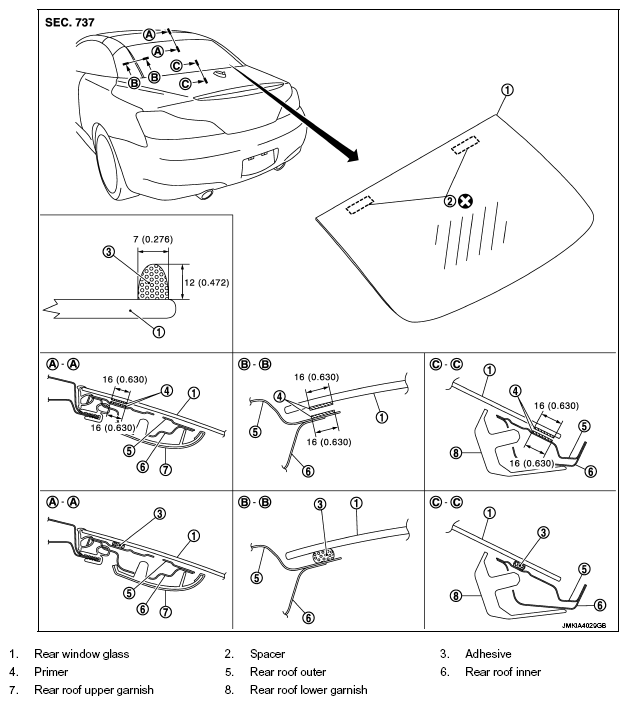

Fig 1: Exploded View Of Rear Window Glass
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
