Seats -- Convertible
>>
Removal And Installation
>>
Front Seat
>>
Exploded View
>>
Driver's Seat
Driver's Seat

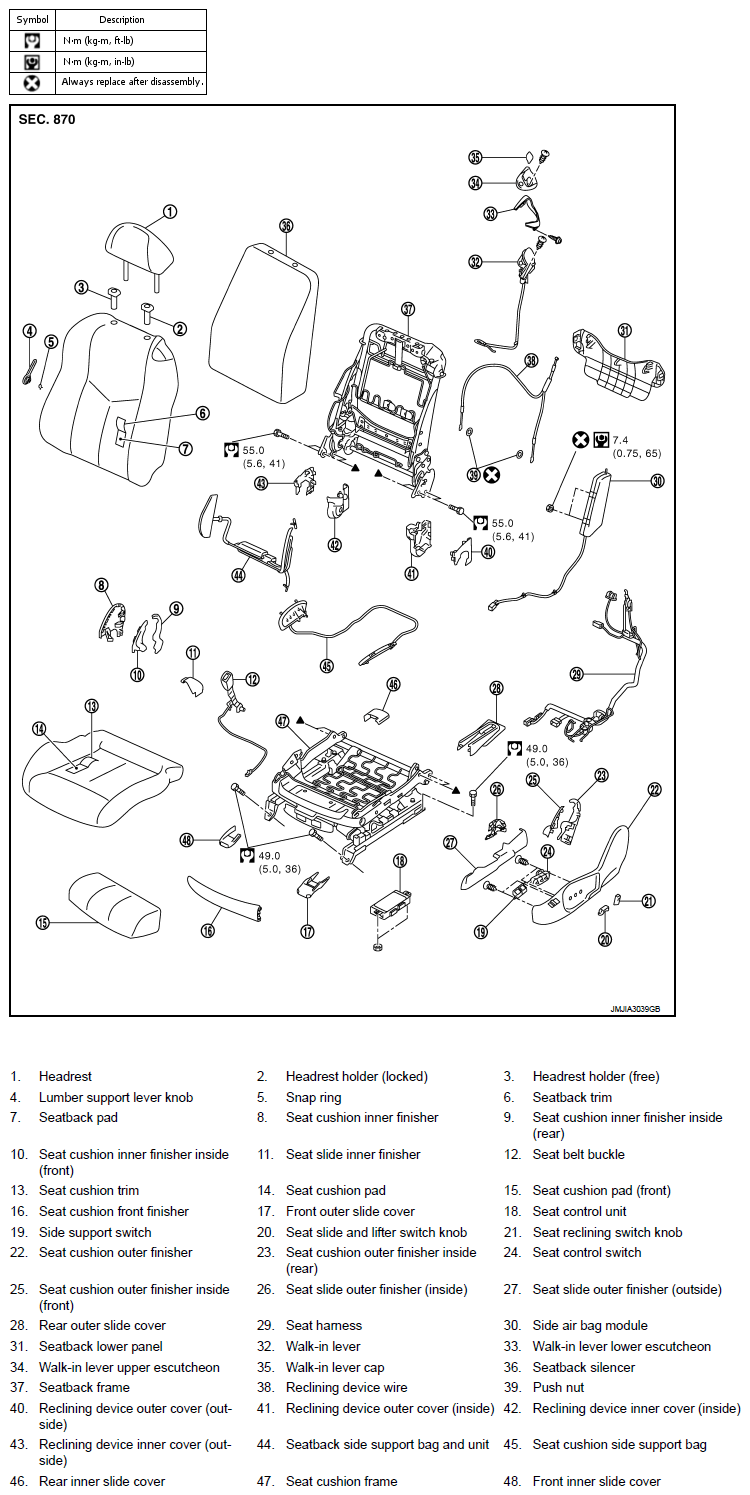

Fig 1: Exploded View Of Driver's Seat With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
