Wiring Diagram - BCM -
Wiring Diagram - BCM -

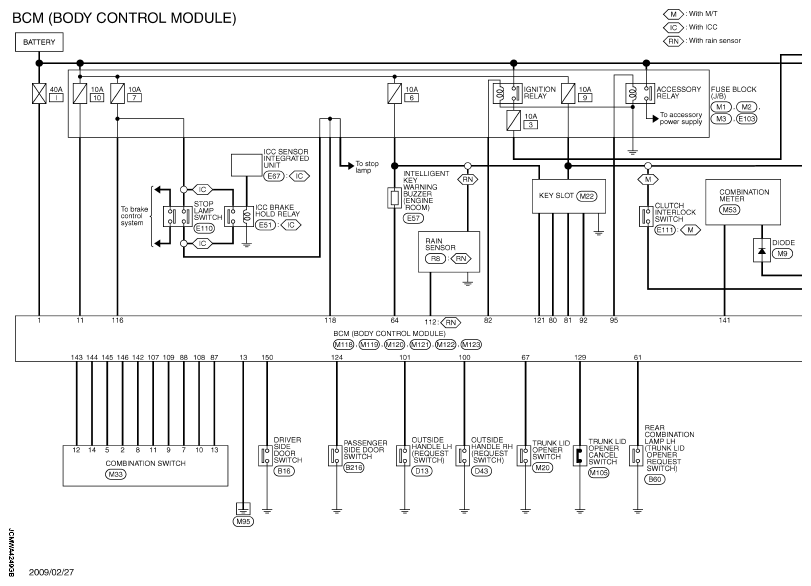

Fig 1: BCM - Wiring Diagram (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

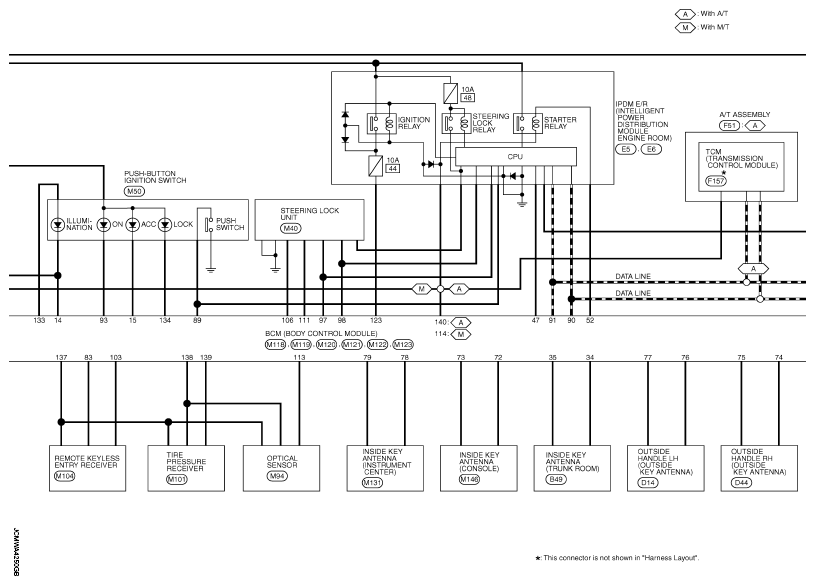

Fig 2: BCM - Wiring Diagram (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

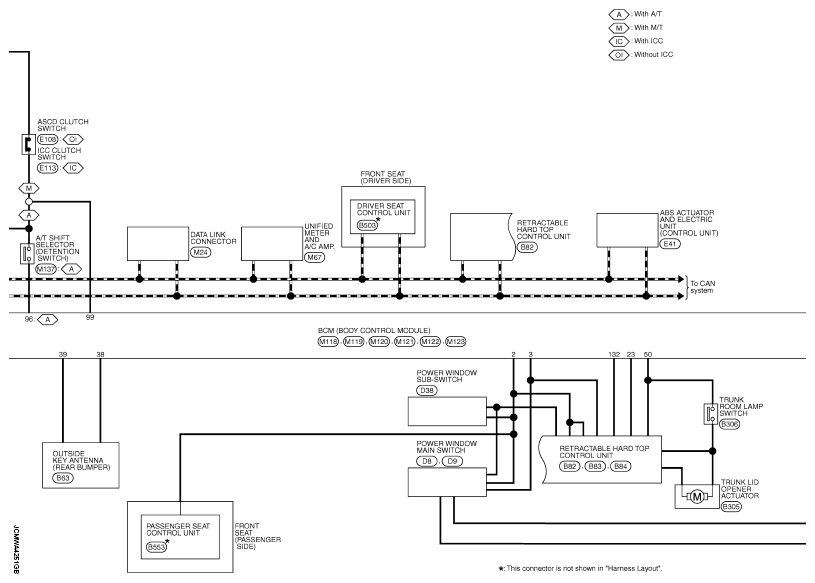

Fig 3: BCM - Wiring Diagram (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

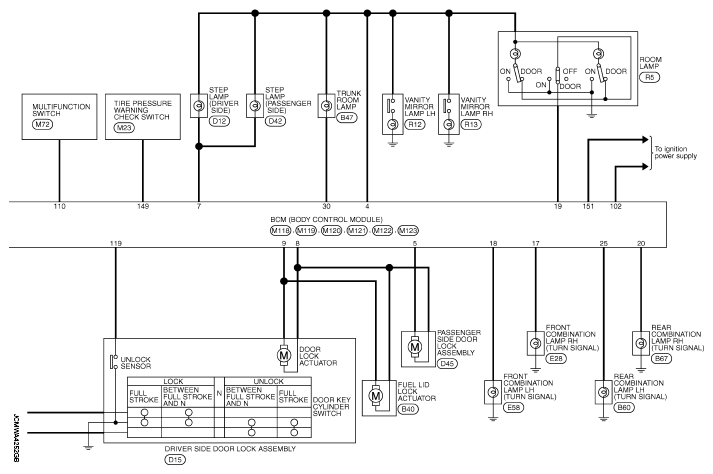

Fig 4: BCM - Wiring Diagram (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

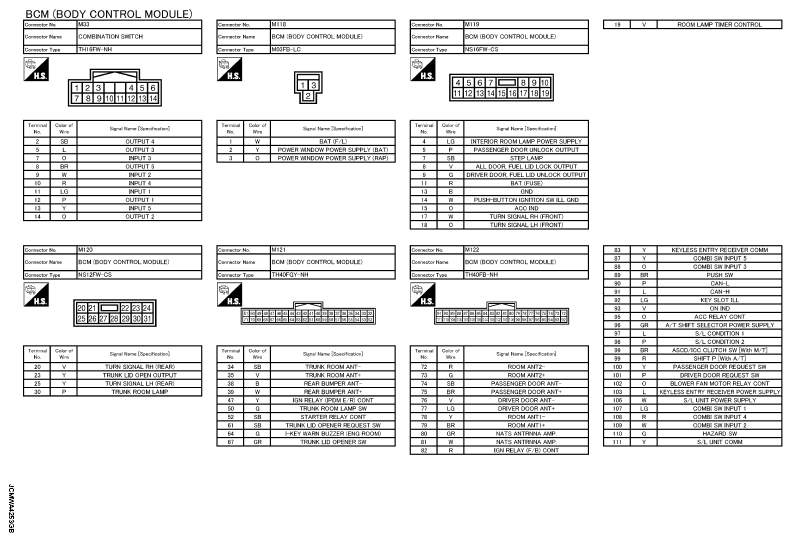

Fig 5: Identifying Body Control Module Connector Terminal (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

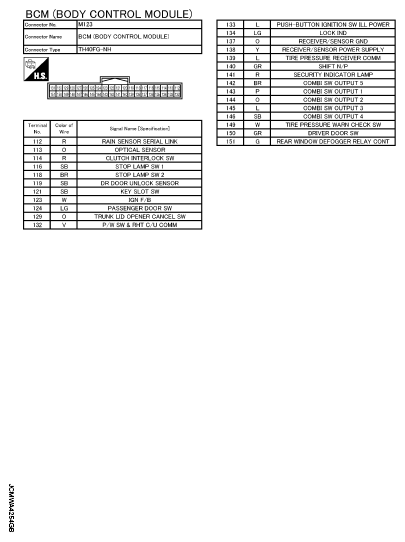

Fig 6: Identifying Body Control Module Connector Terminal (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
