Removal and Installation: Removal

  1. Shift the selector lever to "P" position.
  2. Remove control rod from control device.
  3. Shift the selector lever to "N" position.
  4. Remove knob cover (A) below selector lever downward.
  5. Pull lock pin (1) out of selector lever knob (2).
  6. Remove selector lever knob.
  7. Remove center console assembly. Refer to "EXPLODED VIEW ".
    CAUTION: When disconnecting selector lever position indicator connector from shift position switch, never twist or apply an excessive load to the connector.
  8. Remove the rear ventilator duct 1. Refer to "EXPLODED VIEW ".

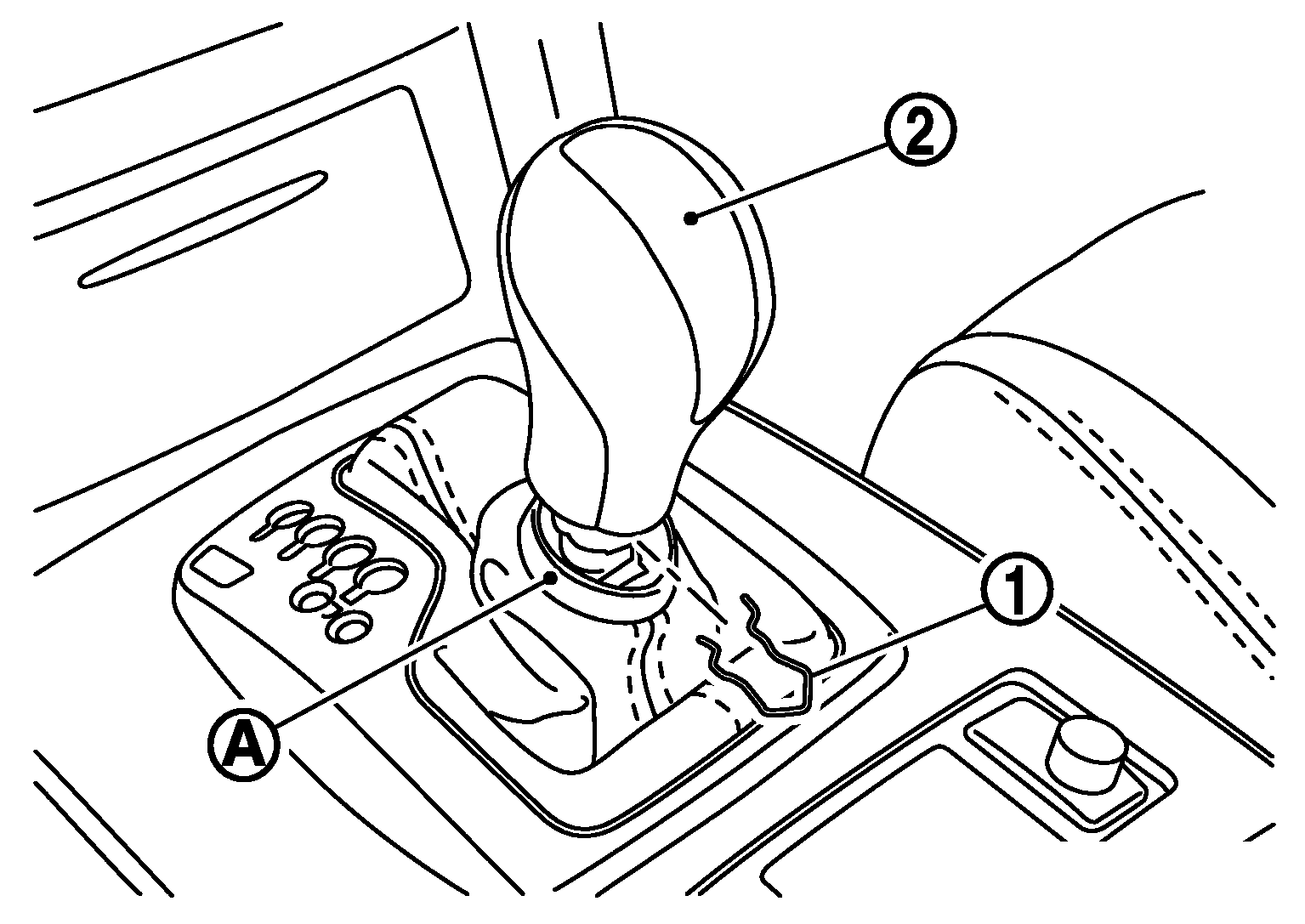

    Fig 1: Identifying Lock Pin And Selector Lever Knob
    G05980362Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Disconnect control device harness connector.
  10. Remove harness clips from control device assembly.
  11. Shift the selector lever to "P" position.
  12. Remove control device assembly mounting bolts.
  13. Slightly lift the control device assembly (1) and slide it rightward.

    Then pull it out in the diagonally right direction.

  14. Remove adapter from control device assembly.
  15. Remove dust cover and dust cover plate from control device assembly.
  16. Remove dust cover from dust cover plate.
  17. Remove shift lock unit from control device assembly.
  18. Remove brackets from vehicle floor panel.
  19. Remove selector lever position indicator from console finisher assembly:
    1. Remove indicator assembly from console finisher assembly. Refer to "EXPLODED VIEW ".
    2. Remove insert finisher from indicator assembly.
    3. Remove selector lever position indicator.
    Fig 2: Lifting Control Device Assembly
    G05218596Courtesy of NISSAN MOTOR CO., U.S.A.
