With Continuous Damping Control

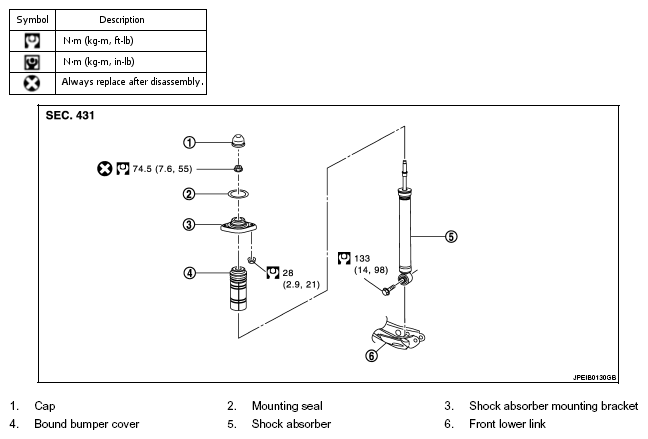

Fig 1: Exploded View Of Rear Shock Absorber - With Continuous Damping Control With Torque Specifications
G05984340Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
