Exploded View
>>
With RAS
With RAS

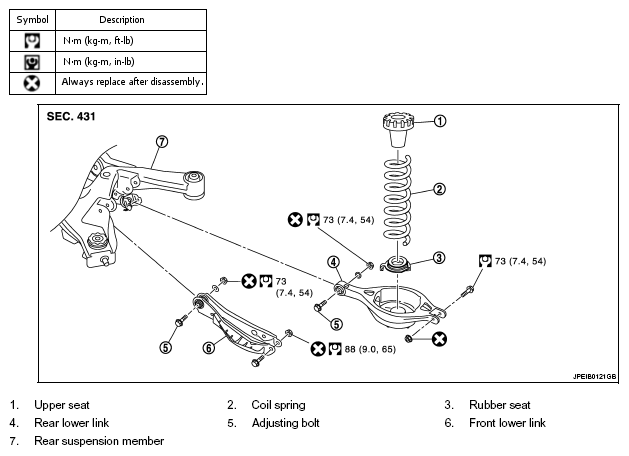

Fig 1: Exploded View Of Rear Lower Link & Coil Spring - With RAS With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
